Ball Joints: Removal
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove spindle. See SPINDLE
. Install spindle in a vise. Remove snap ring from lower ball joint.CAUTION: When replacing ball joint, DO NOT heat ball joint or spindle.

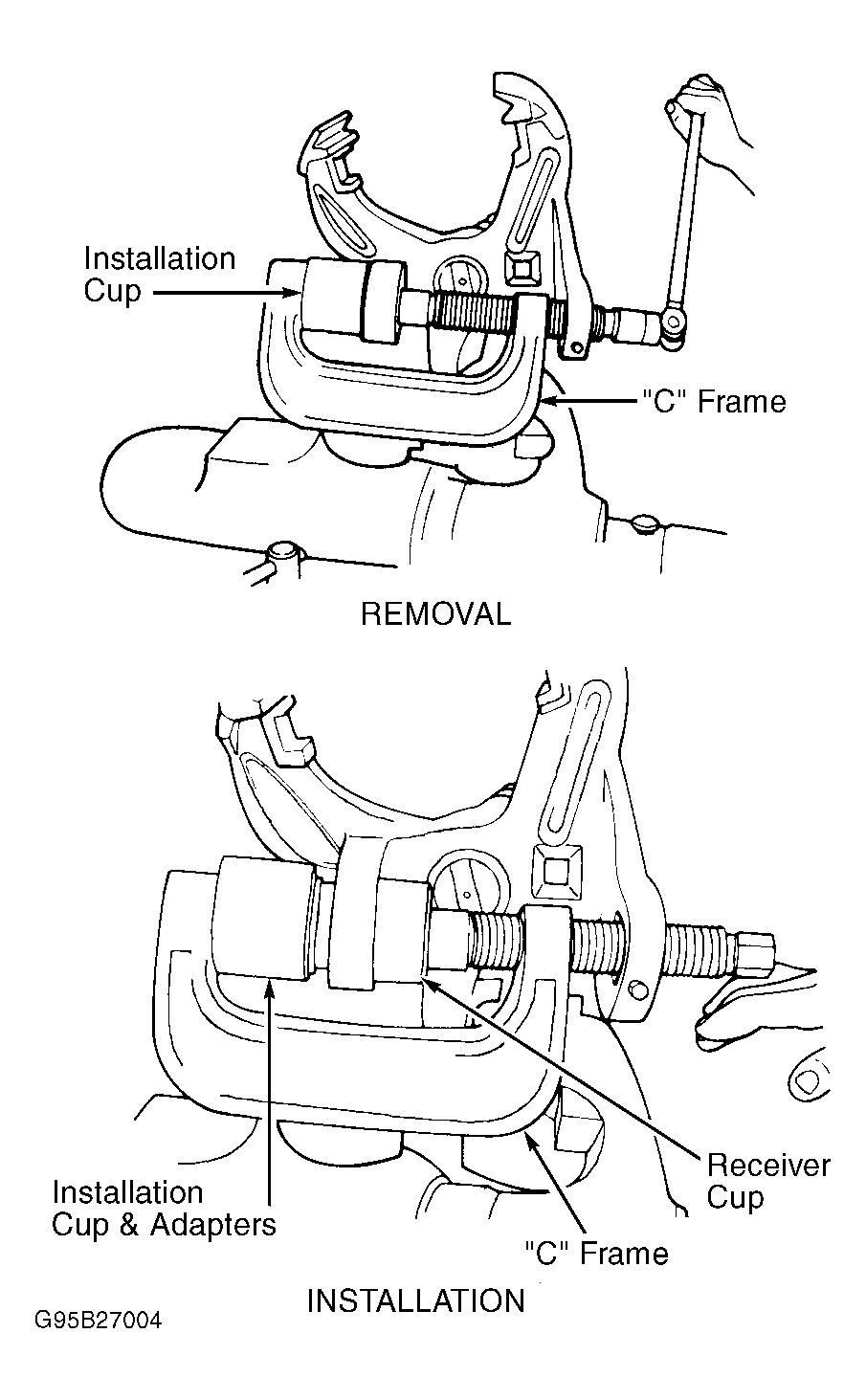

- Using the "C" Frame and Screw (T74P-4635-C) and suitable receiver cup, remove the lower ball joint from the front wheel spindle. Install "C" frame and screw onto upper ball joint with forcing screw going through lower ball joint bore. See Fig 1 . Remove upper ball joint.
