Axle Pivot Bushings: Removal
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Remove the tire and wheel assembly. Remove the coil spring. See COIL SPRING
.NOTE: In order to obtain clearance for pivot bolt removal when servicing the right front axle, it may be necessary to raise the left side of the vehicle to relieve the weight on the suspension.

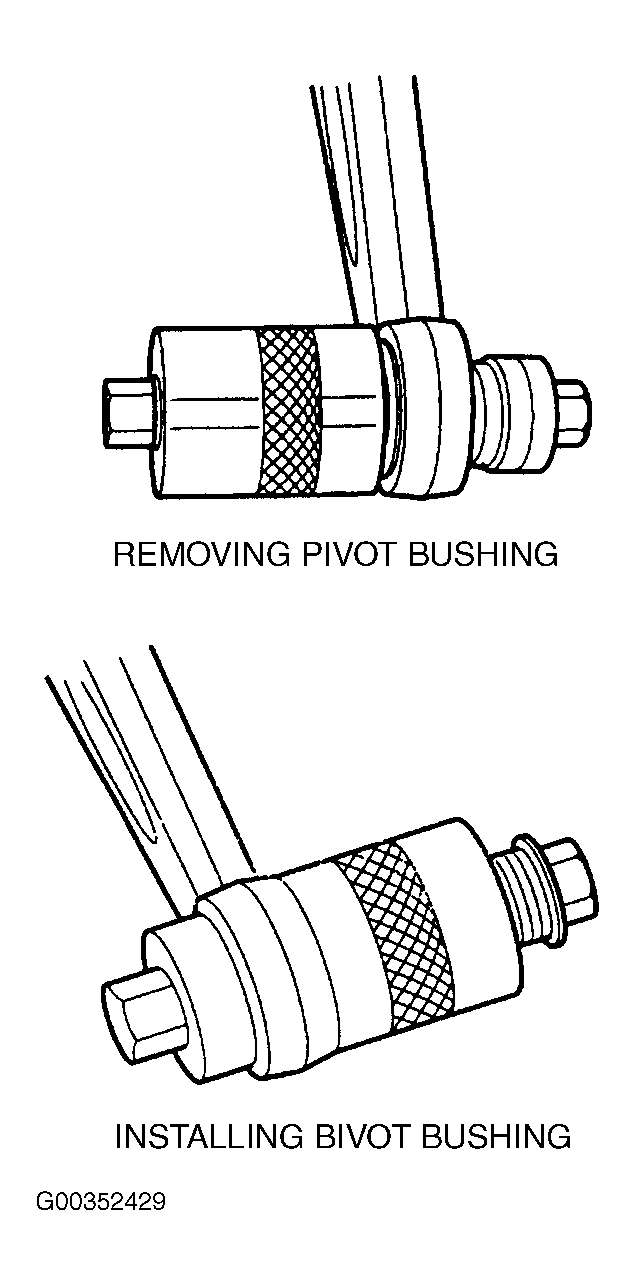

- Remove the bolt and lower the pivot end of the front axle. Using the Adapters, (T80T-5638-A2, T78P-5638-A3, T78P-5638-A1, and T78P-5638-A4) remove the axle pivot bushing. See Fig 1 .
