Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

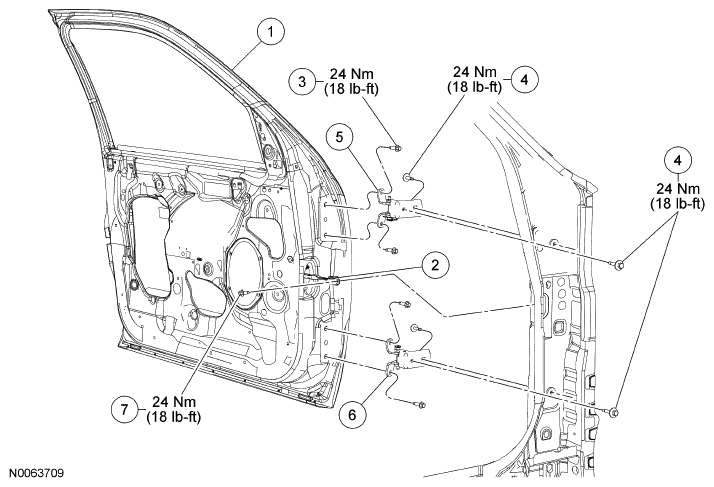

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
77820125 |
Door |
| 2 |
7823552 |
Door check |
| 3 |
W500223-S |
Hinge-to-door bolt (4 required) |
| 4 |
W709910-S |
Hinge-to-body bolts (4 required) |
| 5 |
7822801 |
Upper door hinge |
| 6 |
7822807 |
Lower door hinge |
| 7 |
W709072 |
Door check-to-body bolt |
