Cowl Panel Grille: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

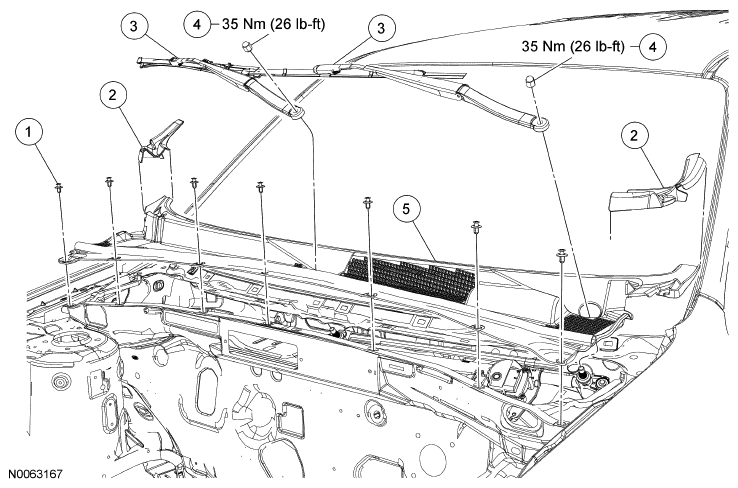

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W705845 |
Scrivet (7 required) |
| 2 |
78020A27 |
LH and RH cowl panel end caps |
| 3 |
17526 |
Wiper pivot arms (2 required) |
| 4 |
W710827 |
Wiper pivot arm nuts (2 required) |
| 5 |
7802222 |
Cowl panel grille |
