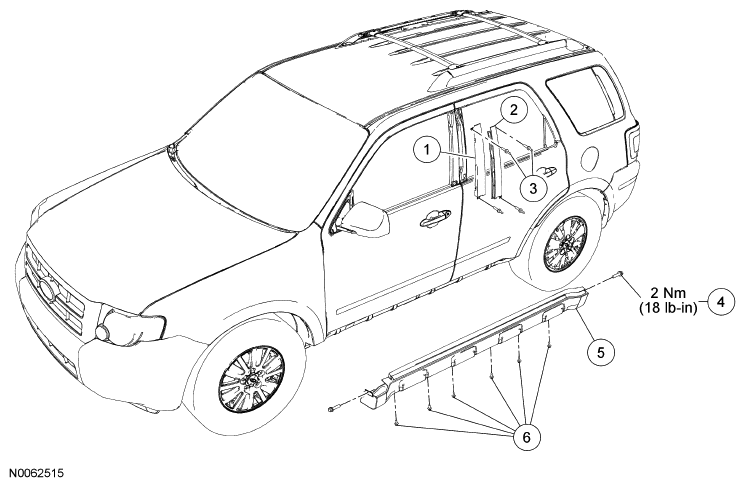

Exterior Trim - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7820555 LH/7820554 RH | Window trim molding - front |
| 2 | 78255A35 LH/78255A34 RH | Window trim molding - rear |
| 3 | W705755 | Rivets (2 required each molding) |
| 4 | W706805 | Rocker panel molding screw (2 required each side) |
| 5 | 101A01 LH/101A00 RH | Rocker panel molding |
| 6 | W705848 | Rocker panel pin-type retainers (6 required each side) |
- For additional information, refer to the appropriate procedure(s).
