Installation (Romeo Engine)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Ford Pickup, 2001 Ford Expedition, 2001 Ford Econoline, 2000 Ford Pickup, and 2000 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Timing chain procedures must be followed exactly or damage to valves and pistons will result.
    Fig 1: Compressing Tensioner Plunger Using Edge Of Vice
    G00407355Courtesy of FORD MOTOR CO.
  1. Compress the tensioner plunger, using an edge of a vise.
  2. Using a small screwdriver or pick, push back and hold the ratchet mechanism.

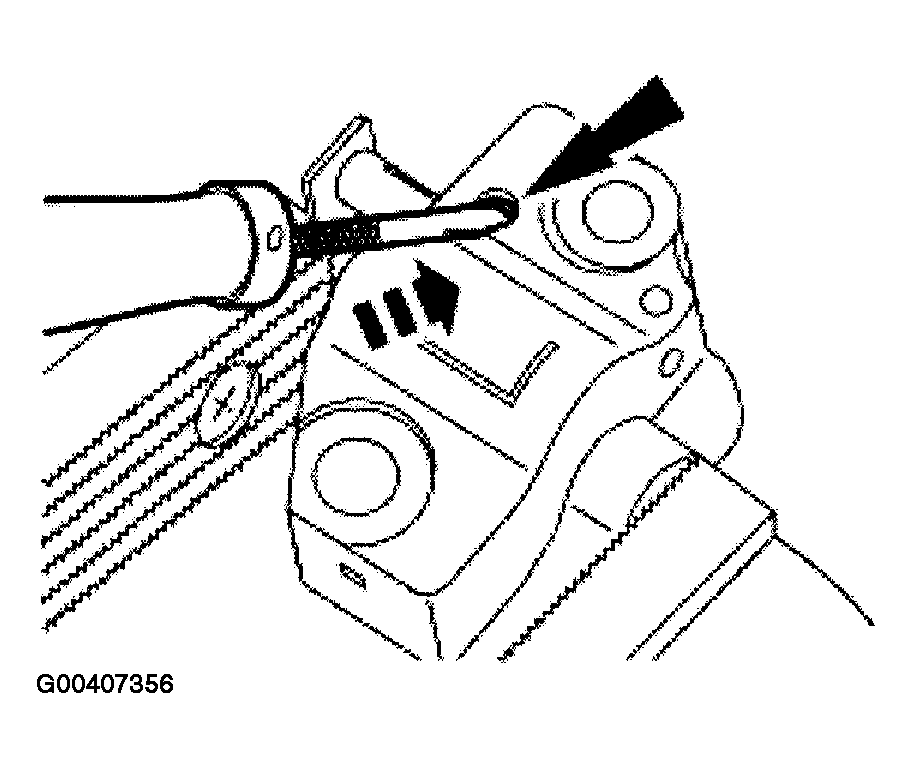

    Fig 2: Pushing Back & Holding Ratchet Mechanism
    G00407356Courtesy of FORD MOTOR CO.
  3. While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

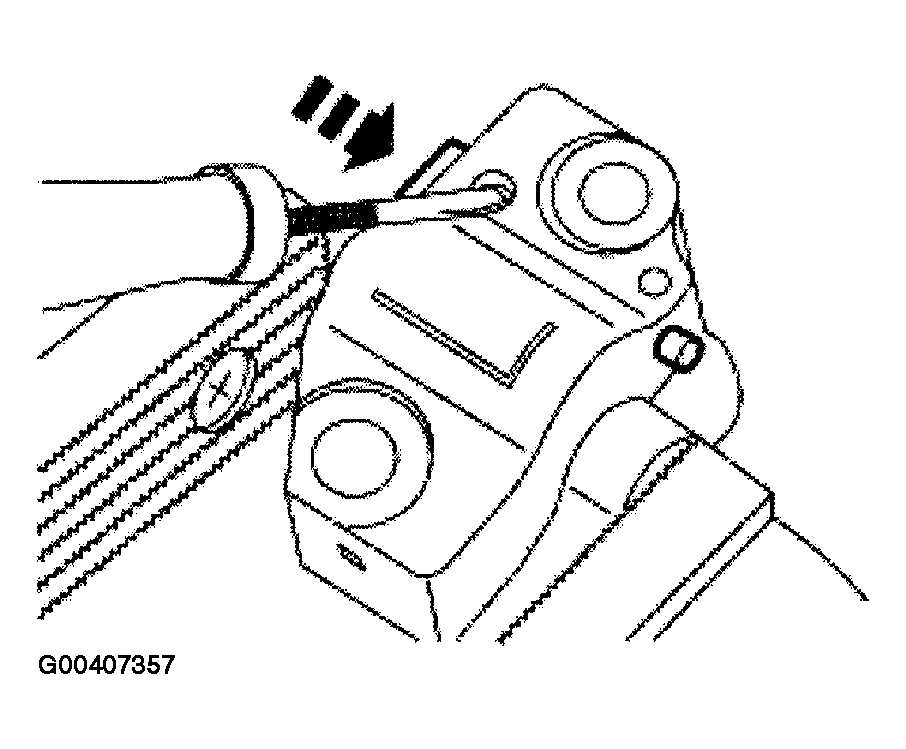

    Fig 3: Pushing Racket Arm Back Into Tensioner Housing
    G00407357Courtesy of FORD MOTOR CO.
  4. Install a paper clip into the hole in the tensioner housing to hold the ratchet assembly and plunger in during installation.
    Fig 4: Installing Paper Clip Into Hole In Tensioner
    G00407358Courtesy of FORD MOTOR CO.
  5. Remove the tensioner from the vise.
  6. If the copper links are not visible, mark one link on one end and one link on the other end, and use as timing marks.
    Fig 5: Marking Timing Chain Links
    G00407359Courtesy of FORD MOTOR CO.
  7. Install the crankshaft sprocket, making sure the flange faces forward.
    Fig 6: Installing Crankshaft Sprocket
    G00407360Courtesy of FORD MOTOR CO.
  8. Install the timing chain guide.
    1. Position the LH timing chain guide.
    2. Install and tighten the bolts.
    3. Position the RH timing chain guide.
    4. Install and tighten the RH bolts.
    9. Fig 7: Installing Timing Chain Guides
    G00407361Courtesy of FORD MOTOR CO.
    CAUTION: Unless otherwise instructed, do not rotate either the crankshaft or the camshafts when timing chains are removed and the cylinder heads are installed. Severe piston and valve damage will occur.
    NOTE: The number one cylinder is at top dead center (TDC) when the stud on the engine block fits into the slot in the handle of the special tool.
    Fig 8: Positioning Crankshaft To TDC
    G00407362Courtesy of FORD MOTOR CO.
  9. Using the special tool, position the crankshaft so the number one cylinder is at TDC.
  10. Remove the special tool.
  11. Position the LH (inner) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.

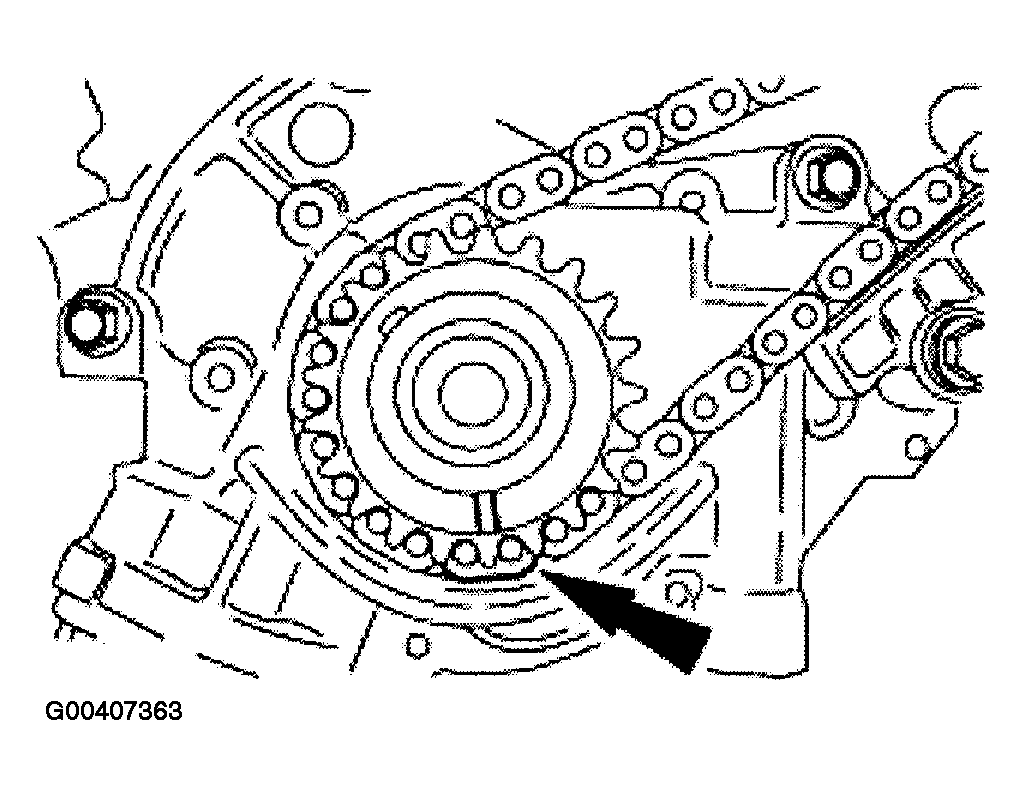

    Fig 9: Aligning Left Timing Chain Copper Mark With Crankshaft Sprocket Mark
    G00407363Courtesy of FORD MOTOR CO.
  12. Install the LH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.
    Fig 10: Aligning Left Timing Chain Copper Mark With Left Camshaft Sprocket Mark
    G00407364Courtesy of FORD MOTOR CO.

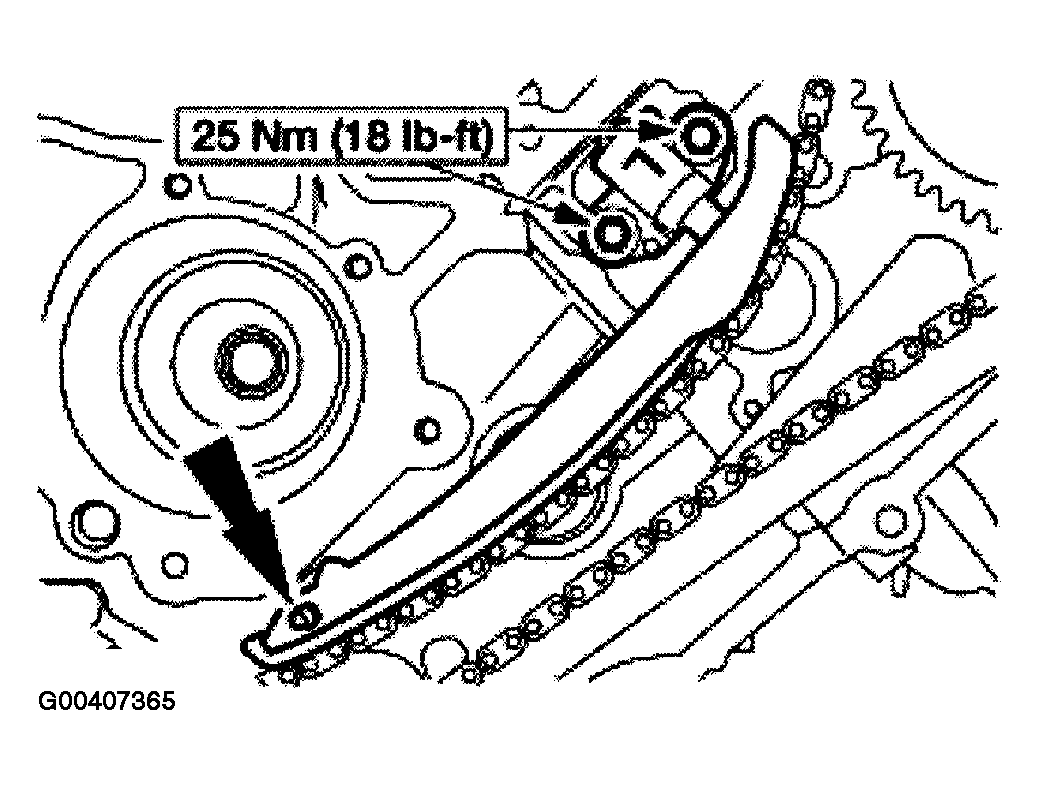

    13. NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.
    Fig 11: Installing Timing Chain Tensioner (Left Side Shown; Right Side Is Similar)
    G00407365Courtesy of FORD MOTOR CO.
  13. Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner.
  14. Remove the retaining clip from the LH timing chain tensioner.
  15. Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.
    Fig 12: Aligning Right Timing Chain Copper Mark With Crankshaft Sprocket Mark
    G00407366Courtesy of FORD MOTOR CO.
  16. Install the RH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.
    Fig 13: Aligning Right Timing Chain Copper Mark With Right Camshaft Sprocket Mark
    G00407367Courtesy of FORD MOTOR CO.
  17. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner. See Fig 11.
  18. Remove the retaining clip from the RH timing chain tensioner.
  19. Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft sprocket and the camshaft sprockets.
    Fig 14: Making Sure Copper Chain Links Are Lined Up With Dots On Crankshaft Sprocket & Camshaft Sprockets
    G00407368Courtesy of FORD MOTOR CO.
  20. Remove the special tools from the camshaft. See Figure.
  21. Install the crankshaft sensor ring on the crankshaft sprocket. See Figure.
  22. Install the engine front cover. See FRONT COVER .
