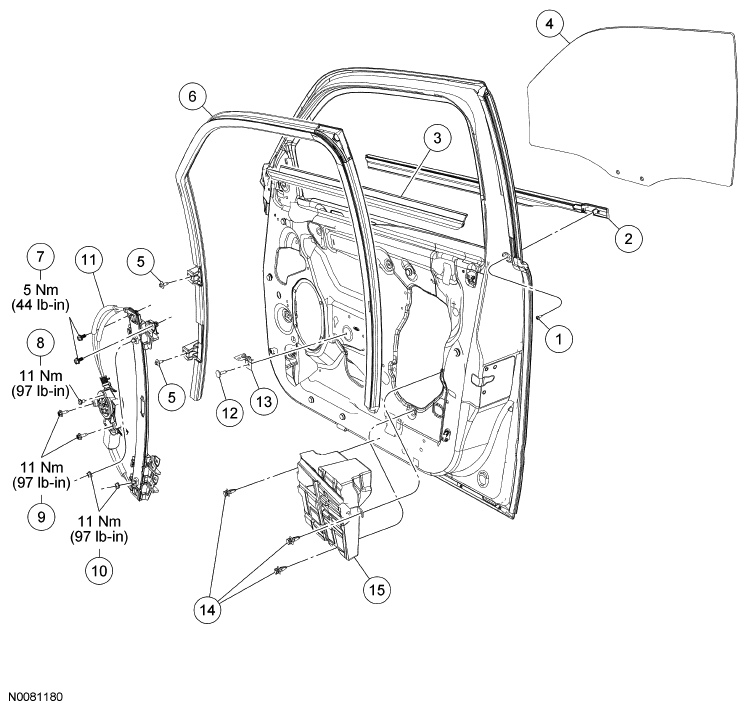

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W506943 | Exterior door glass weatherstrip screw |
| 2 | 21116 | Exterior door glass weatherstrip |
| 3 | 22290 | Interior door glass weatherstrip |
| 4 | 21410 | Front door window glass |
| 5 | W500213 | Front door glass top run bolts (2 required) |
| 6 | 21548 | Front door glass top run |
| 7 | W707195 | Front door glass screws (2 required) |
| 8 | W701753 | Window regulator and motor bolt |
| 9 | - | Window regulator and motor bolts (2 required) |
| 10 | W520111 | Window regulator and motor nuts (2 required) |
| 11 | 23200 | Window regulator and motor |
| 12 | N805651 | Bracket bolt |
| 13 | 226A20 | Bracket |
| 14 | W703613 | Pushpins (3 required) |
| 15 | 211B16 | Pad (bolster) assembly |
- For additional information, refer to the appropriate procedures.
