Fuel Tank and Fuel Pump (FP) Module
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

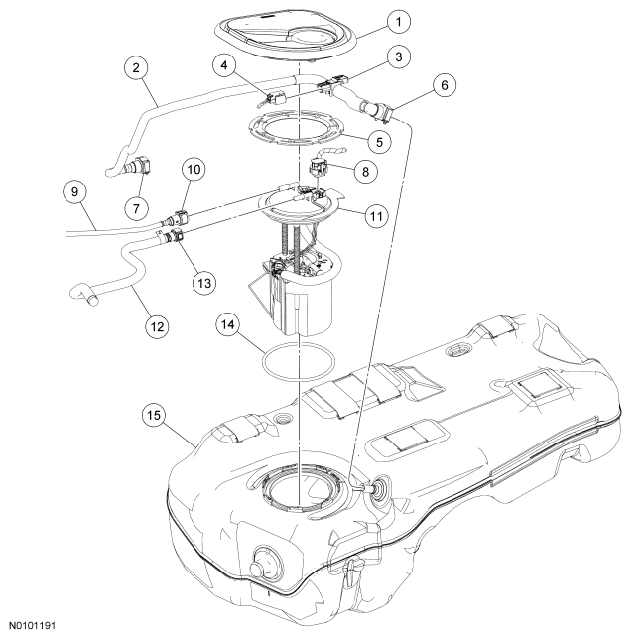

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 78111 | Fuel Pump (FP) module access cover |
| 2 | 9D668 | Fuel vapor tube assembly |
| 3 | - | Fuel Tank Pressure (FTP) sensor (part of 9D668) |
| 4 | 14A464 | FTP sensor electrical connector |
| 5 | 9C385 | FP module lock ring |
| 6 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9D668) |
| 7 | - | Fuel vapor tube assembly-to- EVAP canister quick connect coupling (part of 9D668) |
| 8 | 14A464 | FP module electrical connector |
| 9 | 9J279 | Fuel tube |
| 10 | - | Fuel tube-to- FP module quick connect coupling (part of 9J279) |
| 11 | 9H307 | FP module |
| 12 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 13 | - | Fuel tank filler pipe recirculation tube-to- FP module quick connect coupling (part of 9034) |
| 14 | 9276 | FP module O-ring seal |
| 15 | 9002 | Fuel tank |
