Fuel Lines: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

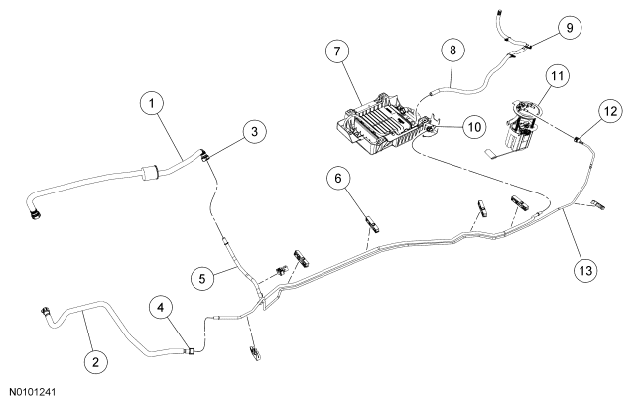

2.5L
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D289 | Fuel vapor tube |
| 2 | 9288 | Fuel jumper tube |
| 3 | - | Fuel vapor tube-to-vapor tube quick connect coupling (part of 9D289) |
| 4 | - | Fuel jumper tube-to-fuel tube quick connect coupling (part of 9288) |
| 5 | - | Vapor tube (part of 9J279) |
| 6 | - | Fuel tube bundle retainer clip (part of 9J279) (7 required) |
| 7 | 9E857 | Evaporative Emission (EVAP) canister |
| 8 | 9S327 | Fresh air tube |
| 9 | - | Fresh air tube pin-type retainer (part of 9S327) (3 required) |
| 10 | - | EVAP canister purge tube-to-vapor tube quick connect coupling (part of 9E857) |
| 11 | 9H307 | Fuel Pump (FP) module |
| 12 | - | Fuel tube-to- FP module quick connect coupling (part of 9J279) |
| 13 | - | Fuel tube (part of 9J279) |

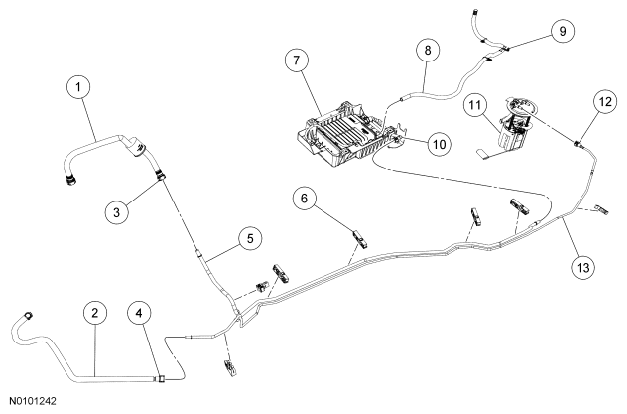

3.0L
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D289 | Fuel vapor tube |
| 2 | 9288 | Fuel jumper tube |
| 3 | - | Fuel vapor tube-to-vapor tube quick connect coupling (part of 9D289) |
| 4 | - | Fuel jumper tube-to-fuel tube quick connect coupling (part of 9288) |
| 5 | - | Vapor tube (part of 9J279) |
| 6 | - | Fuel tube bundle retainer clip (part of 9J279) (7 required) |
| 7 | 9E857 | Evaporative Emission (EVAP) canister |
| 8 | 9S327 | Fresh air tube |
| 9 | - | Fresh air tube pin-type retainer (part of 9S327) (3 required) |
| 10 | - | EVAP canister purge tube-to-vapor tube quick connect coupling (part of 9E857) |
| 11 | 9H307 | Fuel Pump (FP) module |
| 12 | - | Fuel tube-to- FP module quick connect coupling (part of 9J279) |
| 13 | - | Fuel tube (part of 9J279) |

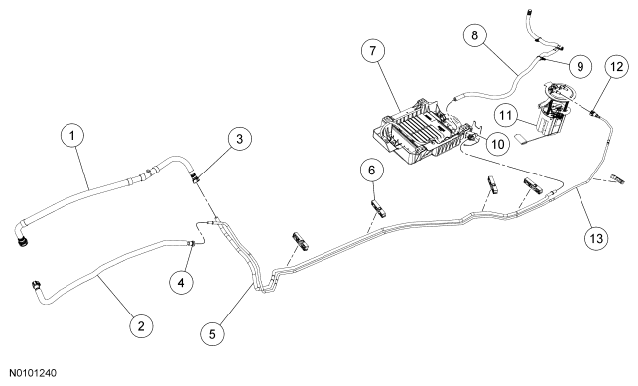

Hybrid
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D289 | Fuel vapor tube |
| 2 | 9288 | Fuel jumper tube |
| 3 | - | Fuel vapor tube-to-vapor tube quick connect coupling (part of 9D289) |
| 4 | - | Fuel jumper tube-to-spring lock coupling (part of 9288) |
| 5 | - | Vapor tube (part of 9J279) |
| 6 | - | Fuel tube bundle retainer clip (part of 9J279) (5 required) |
| 7 | 9E857 | Evaporative Emission (EVAP) canister |
| 8 | 9S327 | Fresh air tube |
| 9 | - | Fresh air tube pin-type retainer (part of 9S327) (3 required) |
| 10 | - | EVAP canister purge tube-to-vapor tube quick connect coupling (part of 9E857) |
| 11 | 9H307 | Fuel Pump (FP) module |
| 12 | - | Fuel tube-to- FP module quick connect coupling (part of 9J279) |
| 13 | - | Fuel tube (part of 9J279) |
