EGR Valve
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

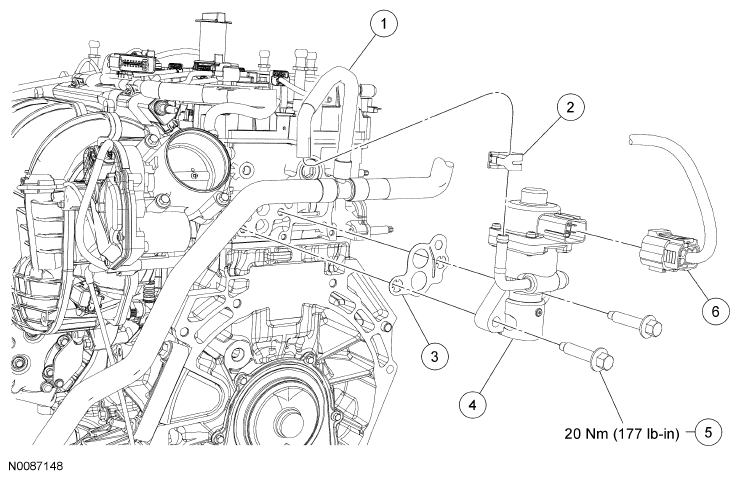

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
EGR valve coolant hose (part of 18C266) |
| 2 |
W527382 |
EGR valve coolant hose clamp |
| 3 |
9D476 |
EGR valve gasket |
| 4 |
9D475 |
EGR valve |
| 5 |
W500225 |
EGR valve bolt (2 required) |
| 6 |
14A464 |
EGR valve electrical connector |
