Coolant Outlet
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

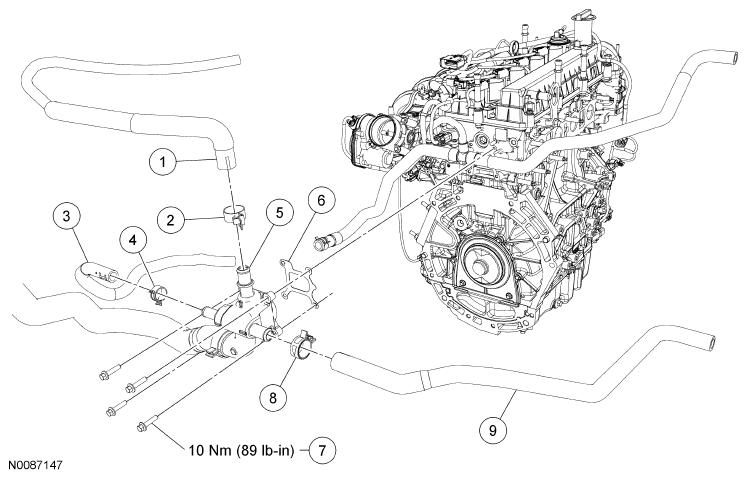

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8260 | Upper radiator hose |
| 2 | W527212 | Upper radiator hose clamp |
| 3 | 8A582 | Coolant bypass hose |
| 4 | W525958 | Coolant bypass hose clamp |
| 5 | 8K556 | Coolant outlet |
| 6 | 8255 | Coolant outlet gasket |
| 7 | W500015 | Coolant outlet bolt (4 required) |
| 8 | W527362 | Heater hose clamp |
| 9 | 18K580 | Heater hose |
