Removal and Installation
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

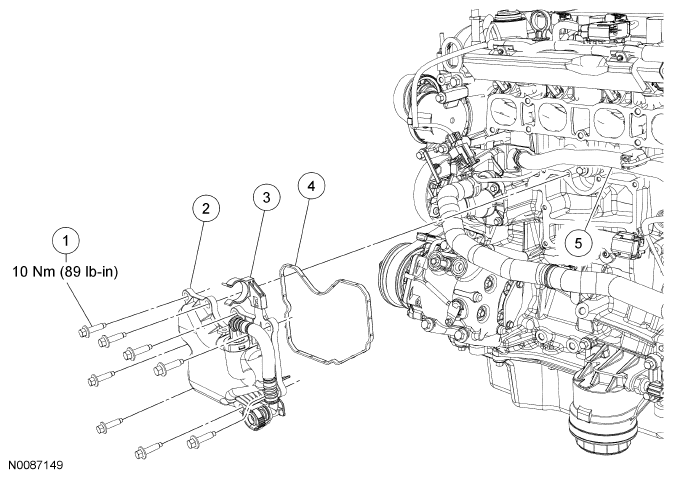

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500214 | Crankcase vent oil separator bolt (8 required) |
| 2 | 6A785 | Crankcase vent oil separator |
| 3 | - | Coolant bypass hose clip (part of 6A785) |
| 4 | 6B752 | Crankcase vent oil separator gasket |
| 5 | 8548 | Coolant bypass hose |
- Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
- Release the coolant bypass hose from the clip.
- Remove the 8 bolts, the crankcase vent oil separator and gasket.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
- Clean and inspect the crankcase oil vent separator gasket and replace if necessary.
