Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the tool is inserted behind the register housing, not the register trim ring. Prying on the register trim ring will damage the register assembly.

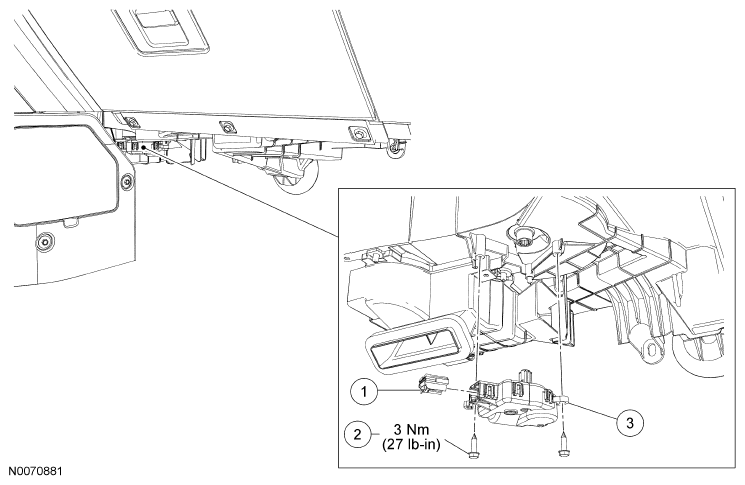

Fig 1: Temperature Blend Door Actuator And Screws LH With Torque Specifications

Courtesy of FORD MOTOR CO.

Using a suitable tool, gently pry to disengage the register clips from the instrument panel while working around the perimeter of the register.
Remove the passenger side register.
To install, reverse the removal procedure.
