Air Conditioning (A/C) Compressor - Hybrid: Material
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

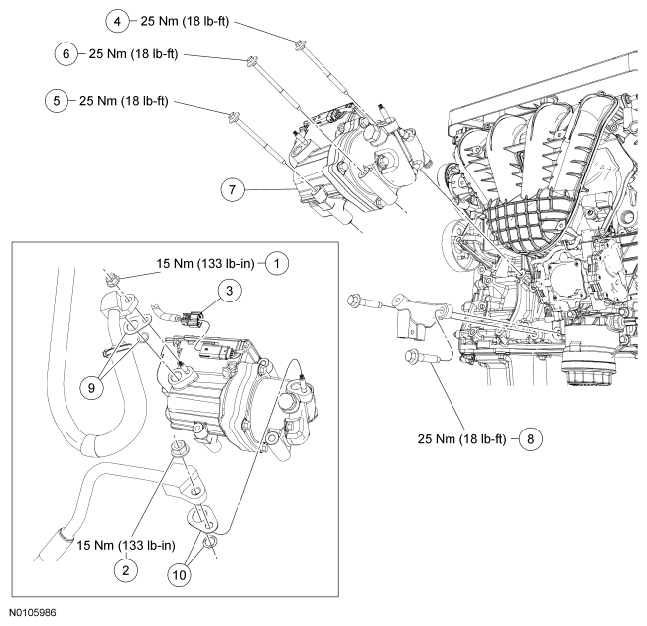

Fig 1: Air Conditioning (A/C) Compressor -- Hybrid Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor suction fitting nut |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | - | A/C compressor electrical connector (part of 14290) |
| 4 | W711926 | Upper A/C compressor bolt |
| 5 | W711926 | Lower front A/C compressor bolt |
| 6 | W711926 | Lower rear A/C compressor bolt |
| 7 | 19703 | A/C compressor |
| 8 | W500320 | A/C compressor bracket bolt (2 required) |
| 9 | 19B596 | O-ring seal and gasket seal kit |
| 10 | 19B596 | O-ring seal and gasket seal kit |
