Section 249 (Front Suspension - 4WD Leaf Spring - Excursion, F250-F550 Super Duty): Description
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Ford Pickup, 2004 Ford Excursion, 2004 Ford Cab & Chassis, 2003 Ford Pickup, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

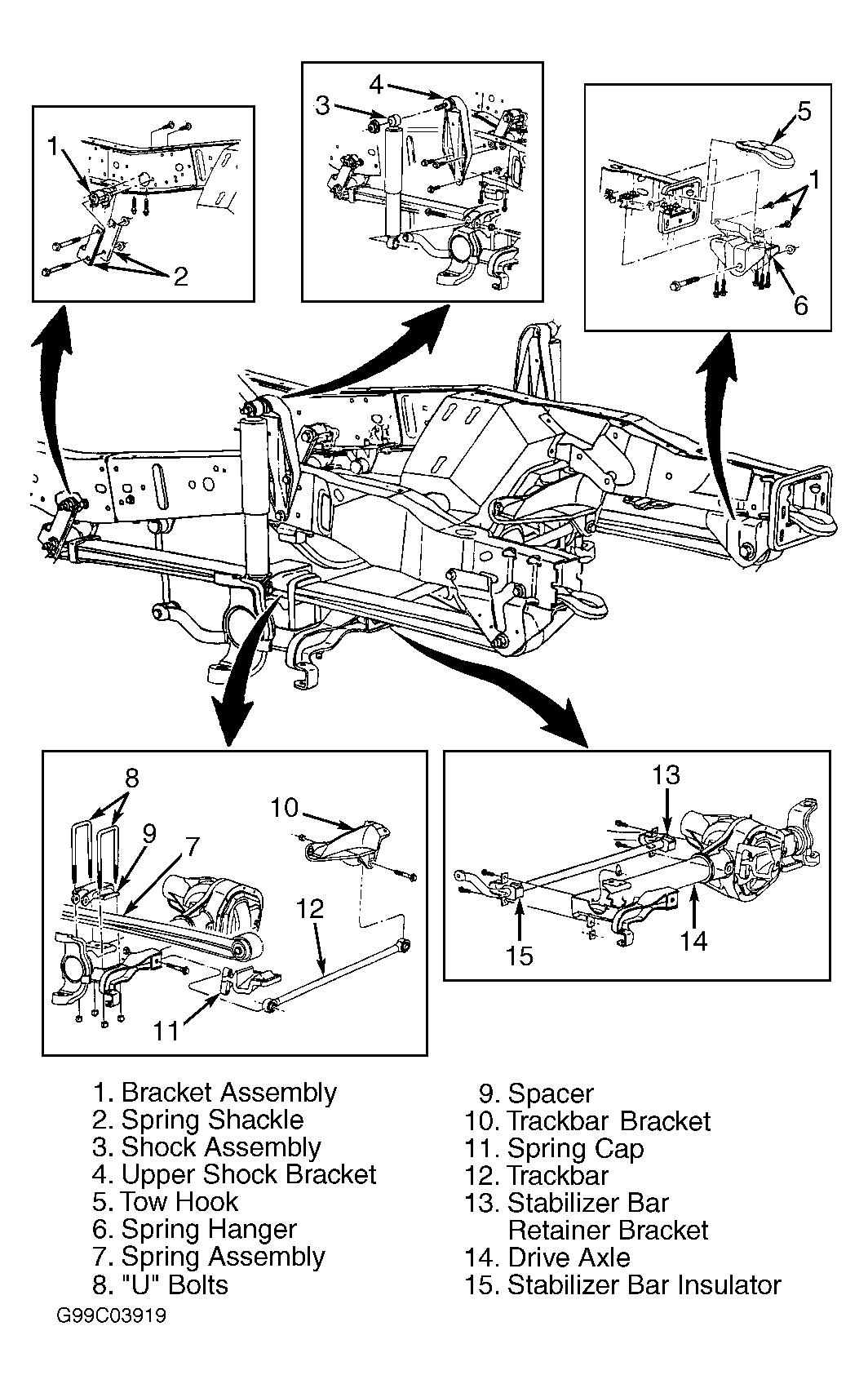

Monobeam axle system, consisting of a solid drive axle with ball joint-supported steering knuckles. All drive axles are suspended by semi-elliptic leaf-type springs. See Fig 1.
NOTE:
For additional information on 4WD drive axles, see appropriate DIFFERENTIAL article in DRIVE AXLES.
