Rear Bumper Cover Without Trailer Hitch
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

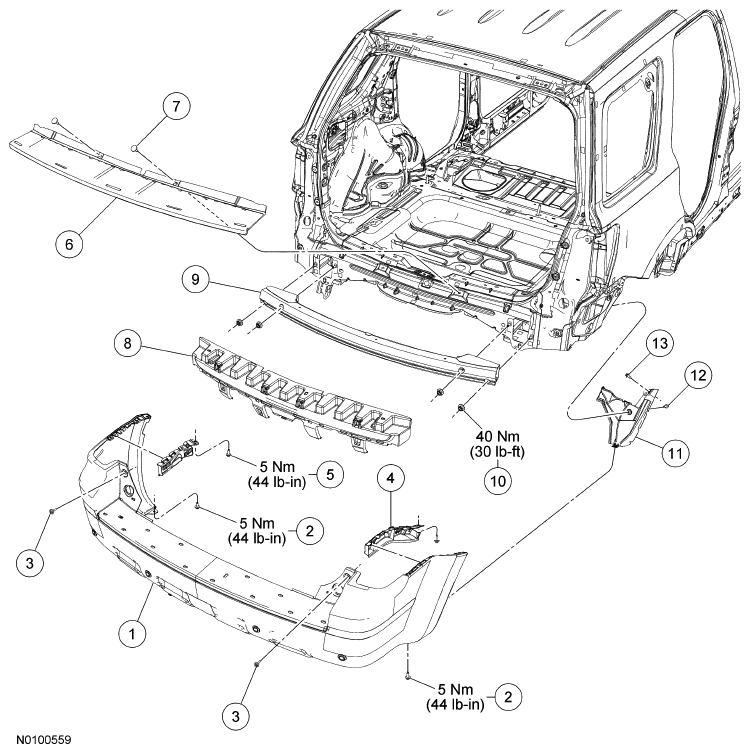

Escape shown in illustration, all other vehicles similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 17775 | Rear bumper cover |
| 2 | W503913 | Rear bumper cover lower screws (2 required) |
| 3 | W706607 | Rear bumper cover center screws (4 required) |
| 4 | 17D943/17D942 | Rear bumper cover reinforcement mounting bracket |
| 5 | W503913 | Rear bumper cover upper screw (2 required) |
| 6 | 17A810 | Rear bumper step pad |
| 7 | W704874 | Rear bumper step pad screw (2 required) |
| 8 | 17787 | Rear bumper isolator |
| 9 | 17D942 | Rear bumper |
| 10 | W706817 | Rear bumper nut (4 required) |
| 11 | 16A550-ARH/16A550- BLH | Rear splash shield |
| 12 | W706713 | Rear splash shield pin-type retainer (4 required) |
| 13 | W503913 | Rear splash shield screw (4 required) |
