Rear Bumper Cover With Trailer Hitch
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

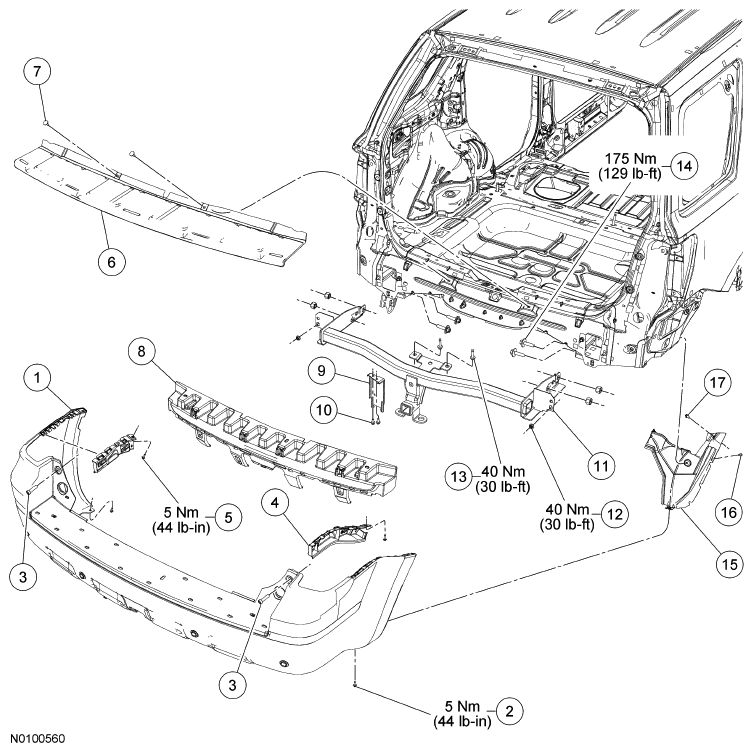

Escape shown in illustration, all other vehicles similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 11775 | Rear bumper cover |
| 2 | W503913 | Rear bumper cover lower screw (2 required) |
| 3 | W706607 | Rear bumper cover center screws (4 required) |
| 4 | 17D943 RH/17D942 LH | Rear bumper cover reinforcement mounting bracket |
| 5 | W503913 | Rear bumper cover upper screw (2 required) |
| 6 | 17A810 | Rear bumper step pad |
| 7 | W704874 | Rear bumper step pad screw (2 required) |
| 8 | 17787 | Rear bumper isolator |
| 9 | - | Trailer hitch electrical connector mounting bracket |
| 10 | - | Trailer hitch electrical connector mounting bracket screw (2 required) |
| 11 | 19D521 | Trailer hitch |
| 12 | W706817 | Trailer hitch-to-back panel nut (2 required) |
| 13 | W707641 | Trailer hitch-to-back panel bolt (2 required) |
| 14 | W708795 | Trailer hitch-to-body bolt (4 required) |
| 15 | 16A550-A RH/16A550-B LH | Rear splash shield |
| 16 | W706713 | Rear splash shield pin-type retainer (4 required) |
| 17 | W503913 | Rear splash shield screw (4 required) |
- For additional information, refer to the appropriate procedures .
