Engine Ignition RH
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

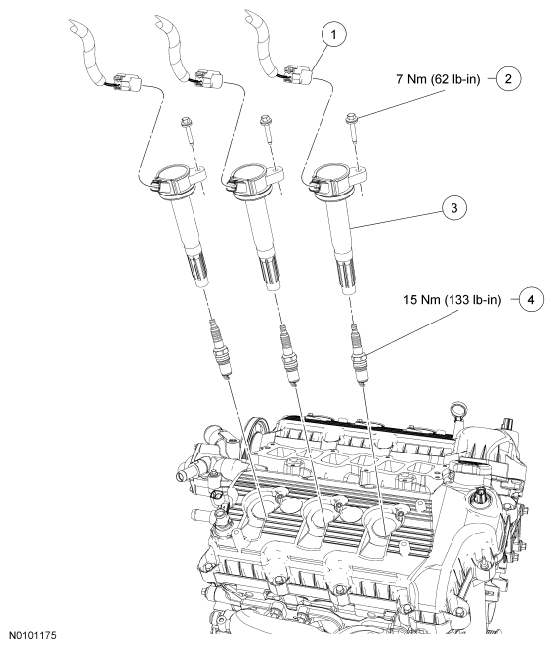

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | RH ignition coil electrical connector (3 required) |
| 2 | W708833 | RH ignition coil bolt (3 required) |
| 3 | 12A375 | RH ignition coil (3 required) |
| 4 | 12405 | RH spark plug (3 required) |
- For additional information, refer to the procedures in this service information.
