Fuel Rail
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

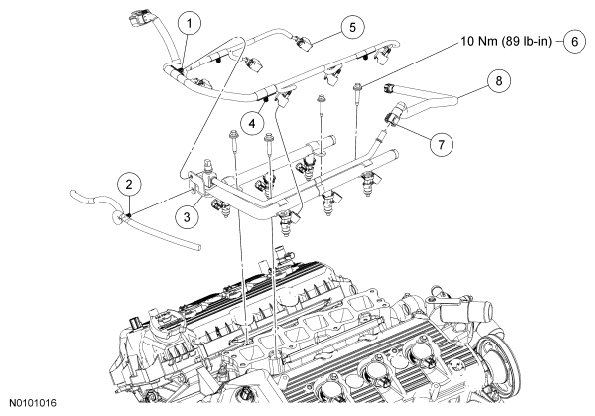

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel charging wire harness pin-type retainer (part of 14A485) |
| 2 | - | Engine wire harness pin-type retainer (part of 14A464) |
| 3 | 9F792 | Fuel rail |
| 4 | - | Wire harness pin-type retainer (part of 14A485) (4 required) |
| 5 | - | Fuel injector electrical connector (part of 14A485) (6 required) |
| 6 | W503275 | Fuel rail bolt (4 required) |
| 7 | - | Fuel jumper tube-to-fuel rail quick connect coupling (part of 9288) |
| 8 | 9288 | Fuel jumper tube |
