Coil Spring: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup, 2004 Ford Excursion, 2003 Ford Pickup, 2003 Ford Excursion, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

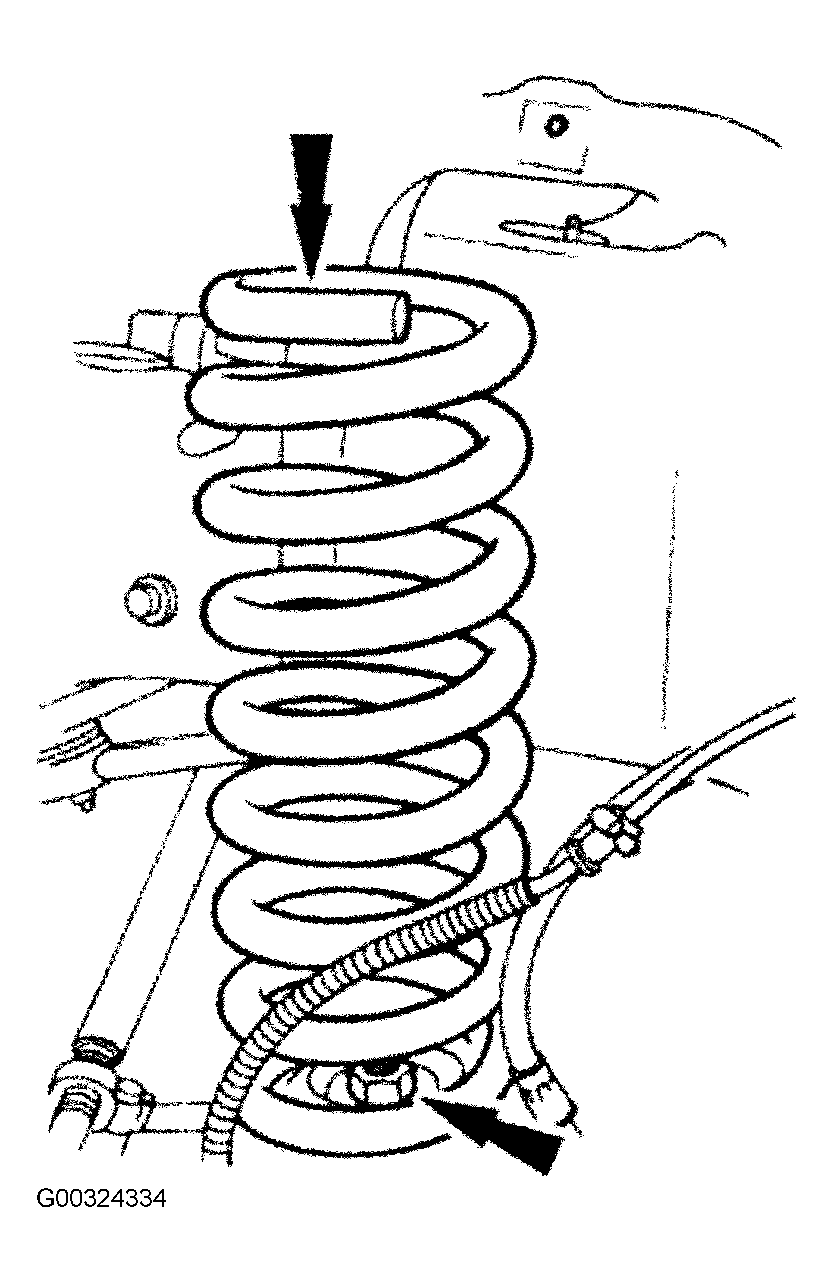

Raise front of vehicle and support with jack stands under frame and floor jack under axle. Remove wheel assembly. Remove shock absorber. See SHOCK ABSORBER . Remove upper spring retainer bolt and remove retainer. Lower floor jack until spring is free of upper spring seat. Using an extension through the top of the spring, remove lower spring retainer, and remove spring. See Fig 1.
