Bypass Tube: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

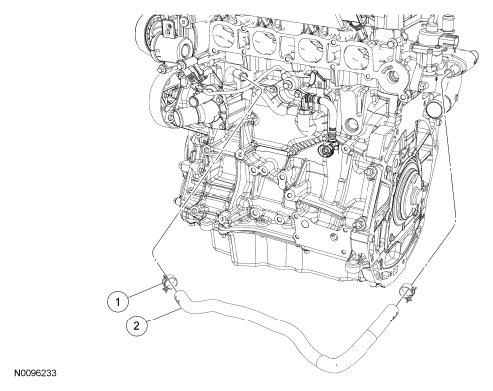

Fig 1: Identifying Bypass Tube And Hose Clamp

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W525958	Hose clamp (2 required)
2	8A582	Bypass tube
