Thermostat Housing - 2.5L: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The thermostat and thermostat housing are serviced as an assembly.

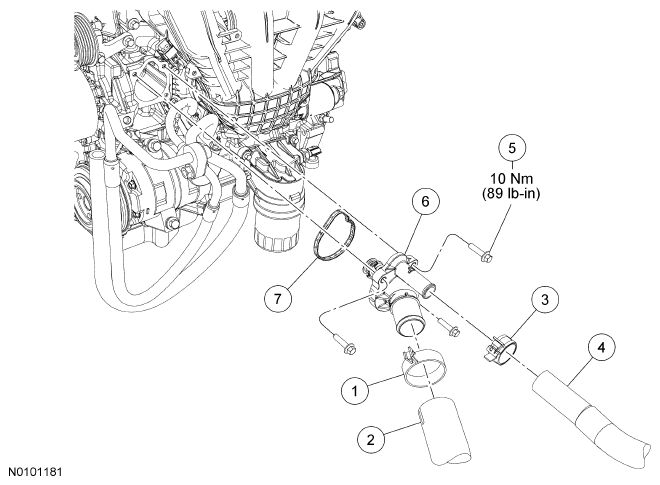

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W527362 | Heater hose clamp |
| 2 | 18C553 | Heater hose |
| 3 | W527372 | Radiator hose clamp |
| 4 | 8B273 | Radiator hose |
| 5 | W500015 | Thermostat housing bolt (3 required) |
| 6 | 8575 | Thermostat housing |
| 7 | 8K530 | Gasket |
