Cooling Fan Motor and Shroud: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

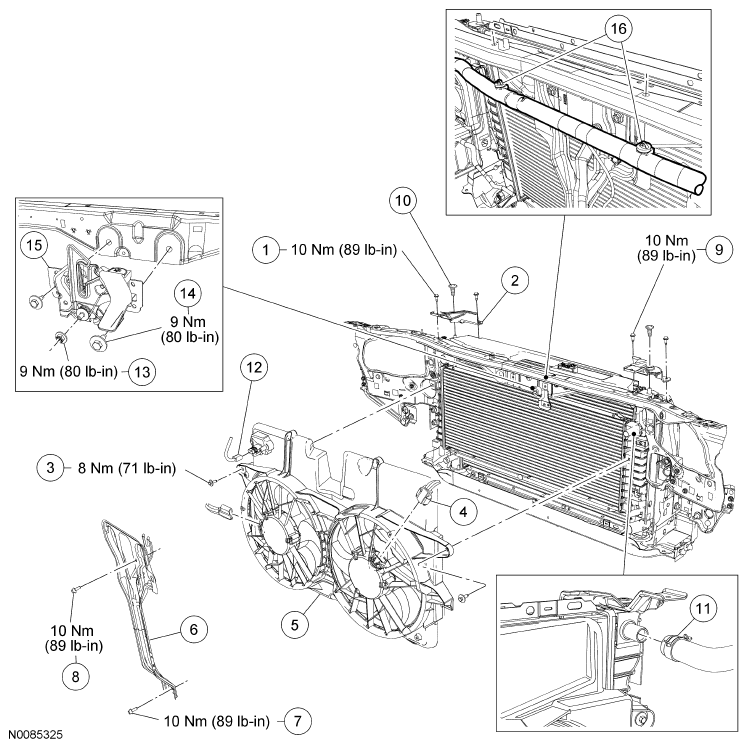

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Radiator bracket bolt (4 required) |
| 2 | 8B068/8B445 | Radiator bracket (2 required) |
| 3 | W503924 | Cooling fan bolt (2 required) |
| 4 | 14A464 | Cooling fan electrical connector (2 required) |
| 5 | 8600 | Cooling fan motor and shroud |
| 6 | 16B613 | Center support |
| 7 | - | Center support lower bolt |
| 8 | W520720 | Center support bolt |
| 9 | - | Front grille bolt (2 required) |
| 10 | - | Pin-type retainer (2 required) |
| 11 | 8W005 | Coolant recovery hose (2.5L only) |
| 12 | 14A464 | Cooling fan resistor electrical connector (2.5L only) |
| 13 | W707137 | Hood latch nut |
| 14 | W707398 | Hood latch bolt (2 required) |
| 15 | 16700 | Hood latch |
| 16 | 14A163 | Wiring harness retainers (2 required) |
