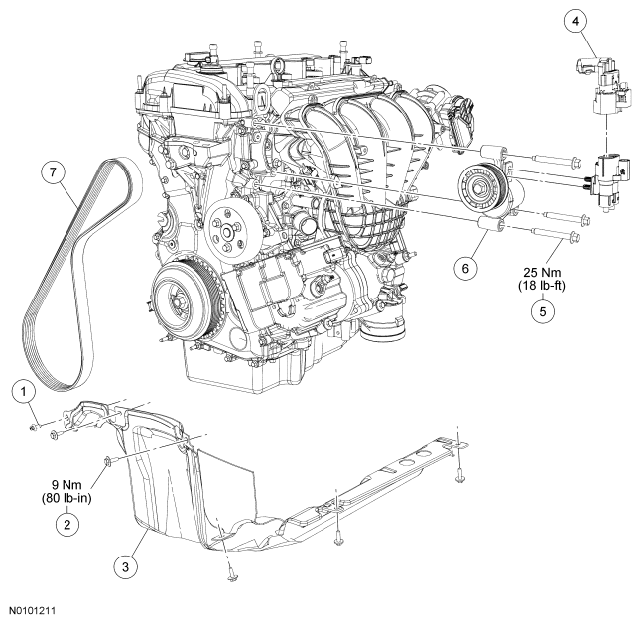

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | RH splash shield pin-type retainer |
| 2 | W707257 | RH splash shield bolt (5 required) |
| 3 | 16A573 | RH splash shield |
| 4 | - | Vehicle high voltage electrical system electrical connector (2 required) |
| 5 | W500314 | Accessory drive belt tensioner bolt (3 required) |
| 6 | 6A228 | Accessory drive belt tensioner |
| 7 | 6C301 | Accessory drive belt |
- For additional information, refer to the appropriate procedure(s).
