Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE
| Adapters for 303-290 303-290A-01 |
|
| Adapter for 303-290A (Support Leg) 303-290A-03A |
|
| Support Bar, Engine 303-290A |

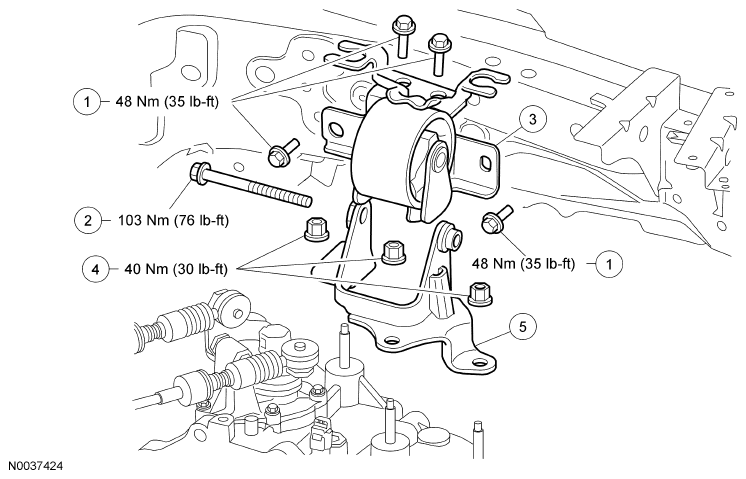

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W500233 | LH transaxle support insulator bolts (4 required) |
| 2 | W710173 | LH transaxle support insulator through-bolt |
| 3 | 6B049 | LH transaxle support insulator |
| 4 | W710213 | LH transaxle support insulator bracket nuts (3 required) |
| 5 | 6M007 | LH transaxle support insulator bracket |
