Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE
| Dial Indicator Gauge with Holding Fixture 100-D002 or equivalent |
|
| Installer, Second Gear Bushing 308-580 or equivalent |
|
| Installer, Sixth Gear Bushing 308-581 or equivalent |
|
| Installer, Spindle/Axle Shaft 205-199 or equivalent |
|
| Plate, Bearing/Oil Seal 205-090 or equivalent |
|
| Puller, Bearing 205-D064 or equivalent |

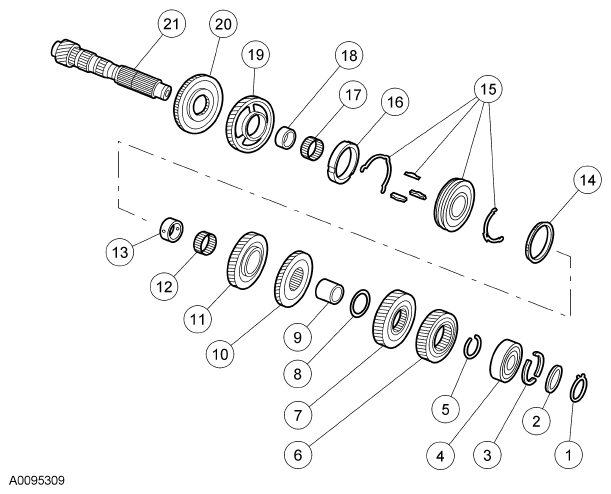

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 4097 | Snap ring |
| 2 | 7L049 | C-ring holder |
| 3 | 4079 | Mainshaft C-ring |
| 4 | 7065 | Mainshaft rear bearing |
| 5 | 4097 | Snap ring |
| 6 | 7K316 | 5th main gear |
| 7 | 7110 | 4th main gear |
| 8 | 7013 | 4th main gear adjusting shim |
| 9 | 7A073 | 3rd/4th main gear shaft spacer |
| 10 | 7B340 | 3rd main gear |
| 11 | 7102 | 2nd main gear |
| 12 | 7K169 | 2nd gear needle bearing |
| 13 | 7N090 | 2nd gear bushing |
| 14 | 7107 | 2nd gear synchronizer ring |
| 15 | 7C115 | 1st and 2nd gear synchronizer assembly |
| 16 | 7107 | 1st gear synchronizer ring |
| 17 | 7K274 | 1st gear needle bearing |
| 18 | 7N090 | 1st main gear bushing |
| 19 | 7100 | 1st main gear |
| 20 | 7142 | Reverse main gear |
| 21 | 7C094 | Mainshaft |
