Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear door window glass must be completely raised.

Remove the rear door trim panel. For additional information, refer to DOOR TRIM PANEL -- REAR .
Position the water shield aside.
Remove the exterior rear door handle reinforcement. For additional information, refer to DOOR HANDLE REINFORCEMENT - EXTERIOR, REAR .
Remove and discard the 3 rear door latch bolts.
- To install, tighten to 12 Nm (106 lb-in).

  Fig 1: Locating Rear Door Latch Bolts
  Courtesy of FORD MOTOR CO.
Disconnect the rear door latch electrical connector.
Remove the rear door latch.
- Slide the rear door latch toward the front of the vehicle.
- Remove the rear door latch with the door lock actuating rod and the interior door handle actuating cable.

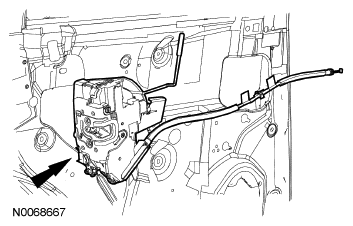

  Fig 2: Locating Rear Door Latch
  Courtesy of FORD MOTOR CO.
If necessary, remove the door lock actuating rod and the interior door handle actuating cable.
To install, reverse the removal procedure.
