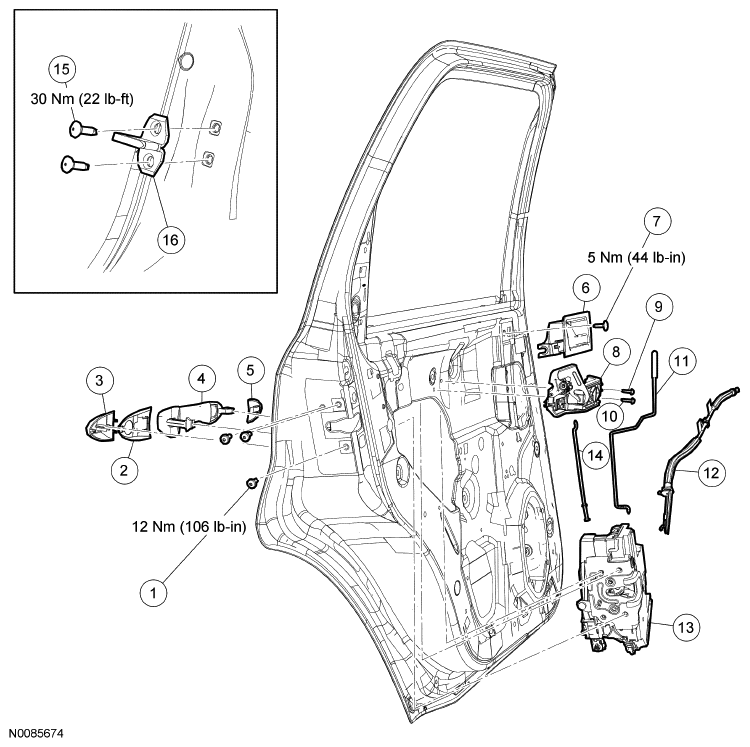

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830-S901 | Rear door latch bolts (3 required) |
| 2 | 5422042 | Exterior rear door handle seal, front |
| 3 | 78218B08 | Exterior rear door handle bezel |
| 4 | 7822404 | Exterior rear door handle |
| 5 | 5422042 | Exterior rear door handle seal, rear |
| 6 | 7822600/7822601 | Interior door handle (RH/LH) |
| 7 | N805651-S424 | Interior door handle screw |
| 8 | 7826604/7826605 | Exterior door handle reinforcement (RH/LH) |
| 9 | - | Exterior door handle reinforcement screw (part of 7826604/7826605) |
| 10 | - | Exterior rear door handle cover retaining screw (part of 7826604/7826605) |
| 11 | 7826460/7826461 | Door lock actuating rod (RH/LH) |
| 12 | 78266A46 | Interior door handle actuating cable |
| 13 | 7826412/7826413 | Rear door latch (RH/LH) |
| 14 | 7826596 | Exterior door handle actuating rod |
| 15 | W707397-S900 | Door striker bolts (2 required) |
| 16 | 7822008 | Door striker |
- For additional information, refer to the procedures in this article.
