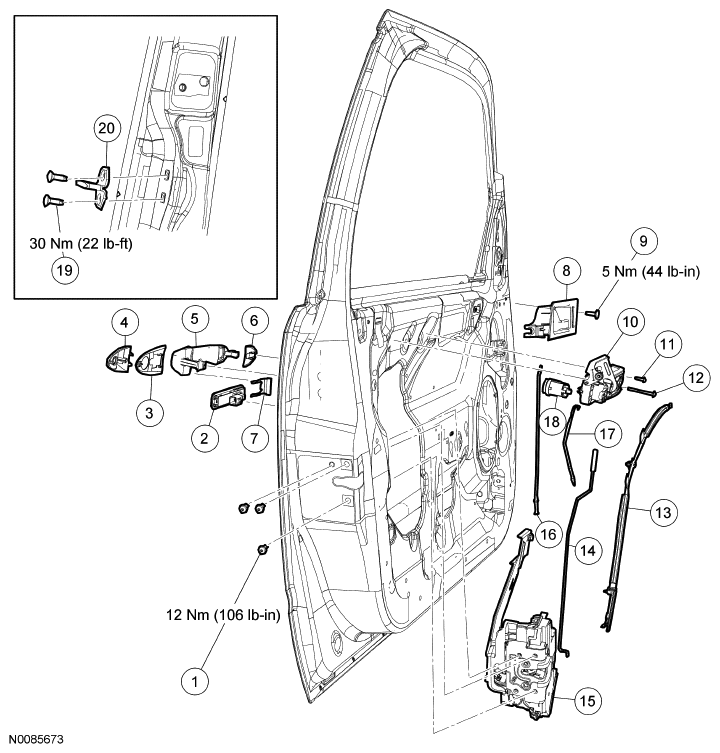

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830-S901 | Front door latch bolts (3 required) |
| 2 | 14A626 | Keyless entry keypad |
| 3 | 5422042 | Exterior front door handle bezel seal |
| 4 | 78218B08/78218A14 | Exterior door handle bezel (without lock cylinder/with lock cylinder) |
| 5 | 7822404 | Exterior front door handle |
| 6 | 5422042 | Exterior front door handle seal, rear |
| 7 | 14A667 | Keyless entry keypad retaining clip |
| 8 | 7822600/7822601 | Interior door handle (RH/LH) |
| 9 | N805651-S424 | Interior door handle screw |
| 10 | 7826684/7826685 | Exterior door handle reinforcement (RH/LH) |
| 11 | - | Exterior door handle reinforcement screw (part of 7826684/7826685) |
| 12 | - | Exterior front door handle cover retaining screw (part of 7826684/7826685) |
| 13 | 78221A00 | Interior door handle actuating cable |
| 14 | 7821852/7821853 | Door lock actuating rod (RH/LH) |
| 15 | 7821812/7821813 | Front door latch (RH/LH) |
| 16 | 7822152 | Exterior door handle actuating rod |
| 17 | 7822135 | Door lock cylinder actuating rod |
| 18 | 5421991 | Door lock cylinder |
| 19 | W707397-S900 | Front door striker bolts (2 required) |
| 20 | 7822008 | Front door striker |
- For additional information, refer to the procedures in this article.
