Antenna Cable - Satellite Radio: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|

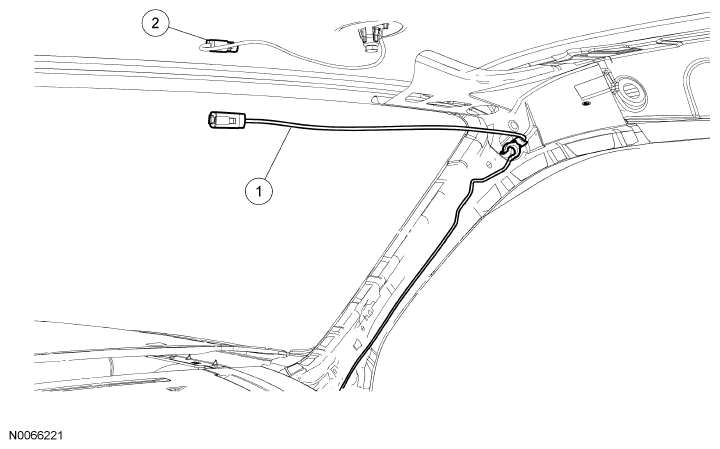

| 1 | 19A397 | Upper satellite radio antenna cable |
| 2 | - | Satellite radio antenna electrical connector (part of 10E893) |
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|

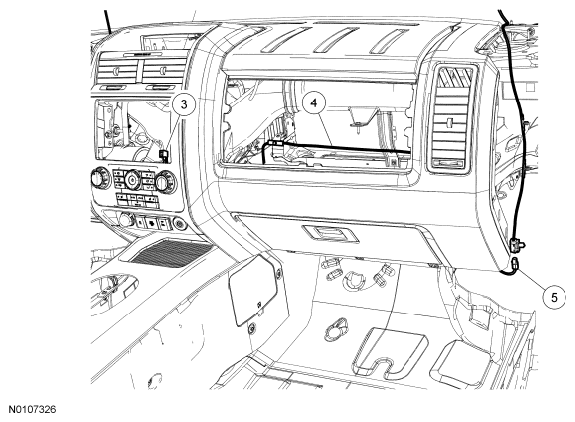

| 3 | - | Satellite radio antenna cable-to-Audio Control Module (ACM) electrical connector |
| 4 | 19A397 | Lower satellite radio antenna |
| 5 | - | Lower satellite radio antenna cable-to-upper satellite radio antenna electrical connector (part of 10E893) |
