Coil Spring: Installation
WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

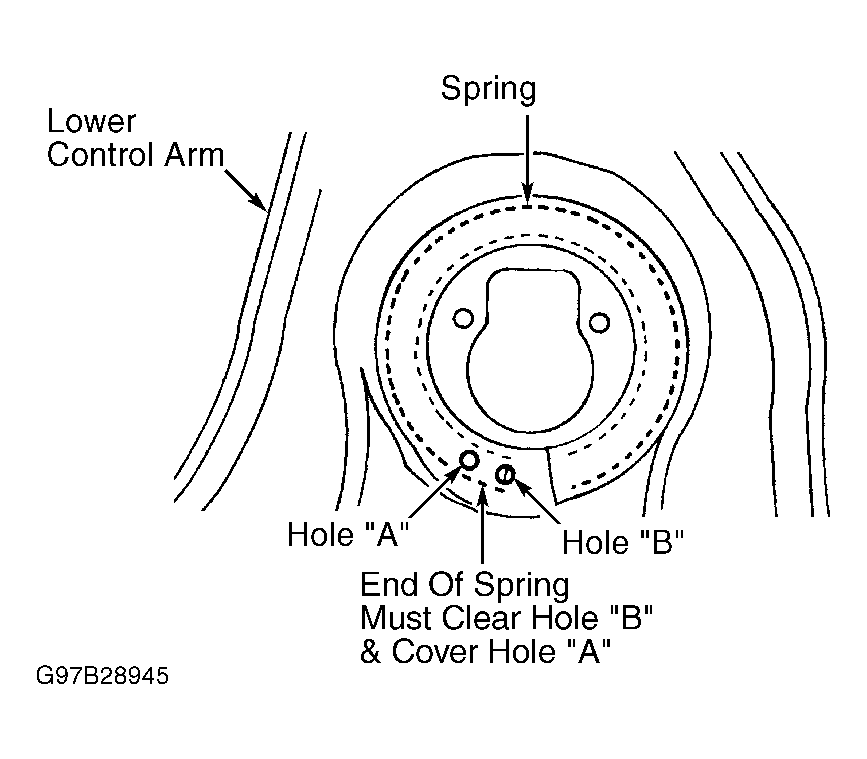

- Ensure end of spring is positioned properly between 2 holes in lower control arm. See Fig 1 . Install NEW cotter pin toward engine compartment. Ensure head of cotter pin is facing tire. Ensure fingers of cotter pin are bent at a right angle to secure.
- To complete installation, reverse removal procedure. Tighten remaining bolts and nuts to specification. See TORQUE SPECIFICATIONS . Before driving vehicle, pump brake pedal several times to restore normal pedal position.
