Knock Sensor (KS): Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

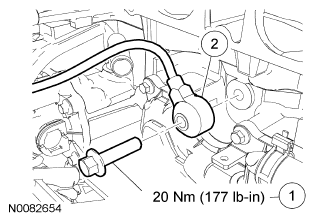

Fig 1: Lnock Sensor (KS) With Torque Specifications
G06096805Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W5000025 Knock Sensor (KS) bolt
2 12A699 KS
