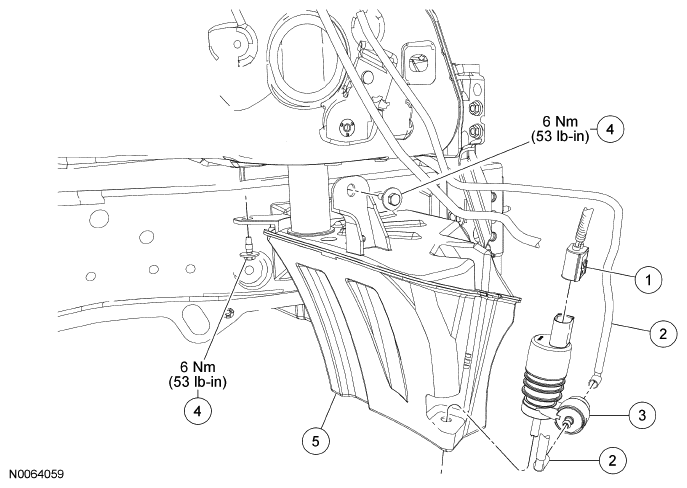

Wiper and Washer System - Exploded View, Washer Pump and Reservoir
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Washer pump electrical connector |
| 2 | 17K517 | Windshield washer reservoir hoses |
| 3 | 17664 | Washer pump |
| 4 | W710593 | Windshield washer reservoir bolts (2 required) |
| 5 | 17B613 | Windshield washer reservoir |
- For additional information, refer to the appropriate procedures.
