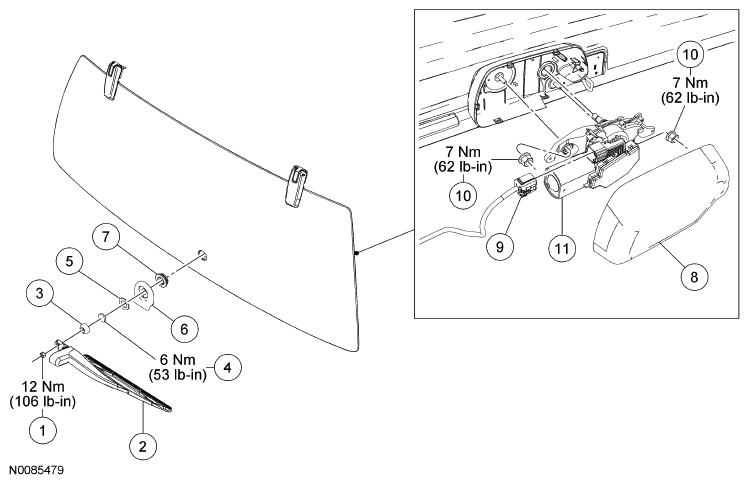

Wiper and Washer System - Exploded View, Rear
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W708312 | Rear window wiper pivot arm nut |
| 2 | 17526 | Rear window wiper pivot arm |
| 2 | 17528 | Rear window wiper blade |
| 3 | 17C526 | Rear window wiper motor shaft nut cover |
| 4 | 17C541 | Rear wiper motor shaft nut |
| 5 | 17C405 | Washer |
| 6 | 17A511 | Rear window handle assembly |
| 7 | 17C582 | Rear window wiper pivot shaft grommet |
| 8 | 17C412 | Rear wiper motor cover |
| 9 | 17508 | Electrical connector |
| 10 | W704521 | Rear wiper motor bracket nuts (2 required) |
| 11 | 17508 | Rear wiper motor |
- For additional information, refer to the appropriate procedures.
