Selector Lever Cable: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

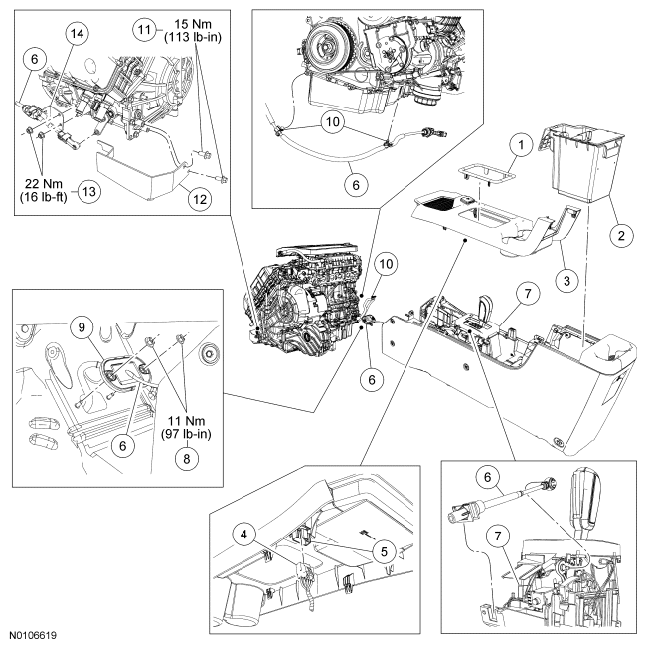

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 78061A16 | Trim ring |
| 2 | 78044H06 | Center console compartment tray |
| 3 | 78045A76 | Center console finish panel |
| 4 | 14A464 | Power outlet electrical connector |
| 5 | 19G247 | Power outlet |
| 6 | 7E395 | Selector lever cable |
| 7 | 7K004 | Selector lever |
| 8 | W707137 | Selector lever cable grommet nuts |
| 9 | - | Selector lever cable grommet (part of 7E395) |
| 10 | - | Selector lever cable retainers (part of 7E395) |
| 11 | W500022 | Selector lever cable splash shield bolts |
| 12 | 7F172 | Selector lever cable splash shield |
| 13 | W520112 | Selector lever cable bracket nuts |
| 14 | 7B229 | Selector lever cable bracket |
