Selector Lever Cable Adjustment

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Place the selector lever in the D position.

Fig 1: Locating Selector Lever In D Position
Courtesy of FORD MOTOR CO.
Disconnect the selector lever cable end from the manual control lever.

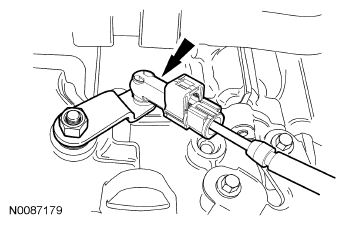

Fig 2: Disconnecting Selector Lever Cable
Courtesy of FORD MOTOR CO.
Place the manual control lever in the D position.
1. Rotate the manual control lever counterclockwise to the PARK position.
2. Rotate the manual control lever clockwise 3 detents to the D position.

  Fig 3: Positioning Manual Lever In D Position
  Courtesy of FORD MOTOR CO.
Release the selector lever cable adjuster lock.
1. Pull out on the adjuster lock tabs.
2. Slide the lock over to unlock the selector lever cable.

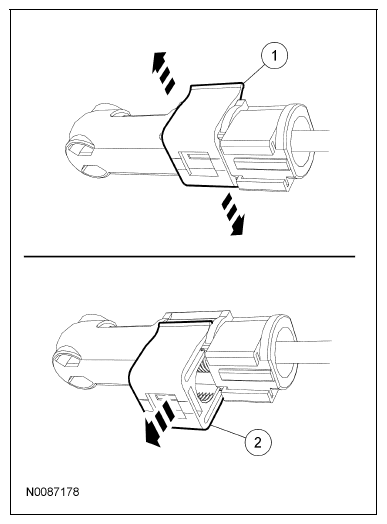

  Fig 4: Releasing Selector Lever Cable Adjuster Lock
  Courtesy of FORD MOTOR CO.
Align the selector lever cable end to the manual control lever ball stud and install it with the adjuster unlocked.

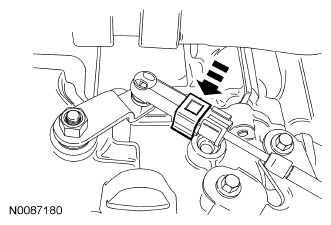

Fig 5: Aligning Selector Lever Cable End To Manual Control Lever Ball Stud
Courtesy of FORD MOTOR CO.
Slide the adjuster tab in place to lock the selector lever cable.

Fig 6: Sliding Adjuster Tab In Place To Lock Selector Lever Cable
Courtesy of FORD MOTOR CO.
