Battery and Battery Tray - Exploded View - Hybrid

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

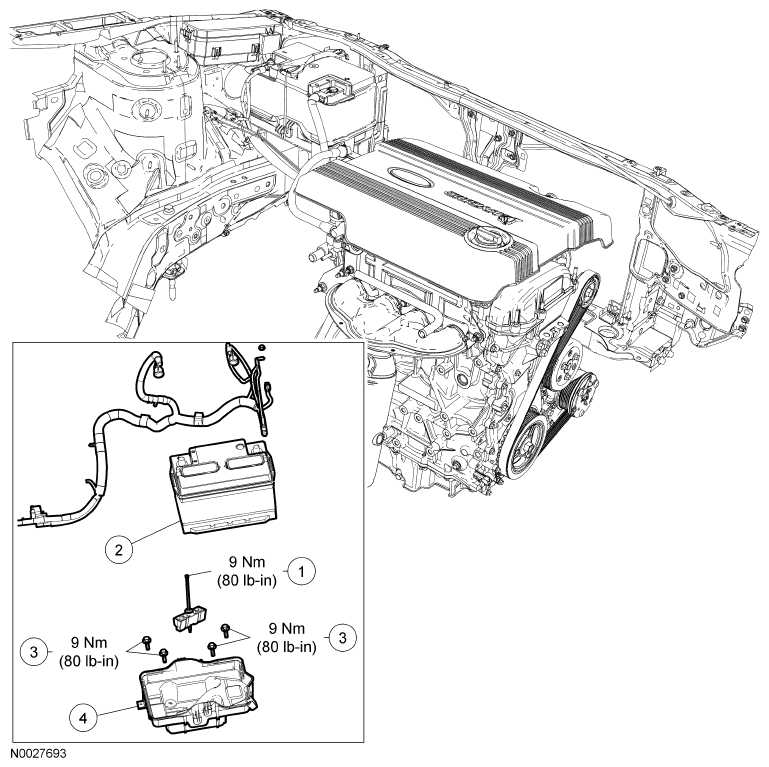

Fig 1: Exploded View Of Battery And Battery Tray With Torque Specifications - Hybrid

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	10576	Battery wedge clamp and bolt
2	10655	Battery
3	W503923	Battery tray bolts (4 required)
4	10723	Battery tray

For additional information, refer to appropriate procedure(s).
