Seat Cushion - Rear: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

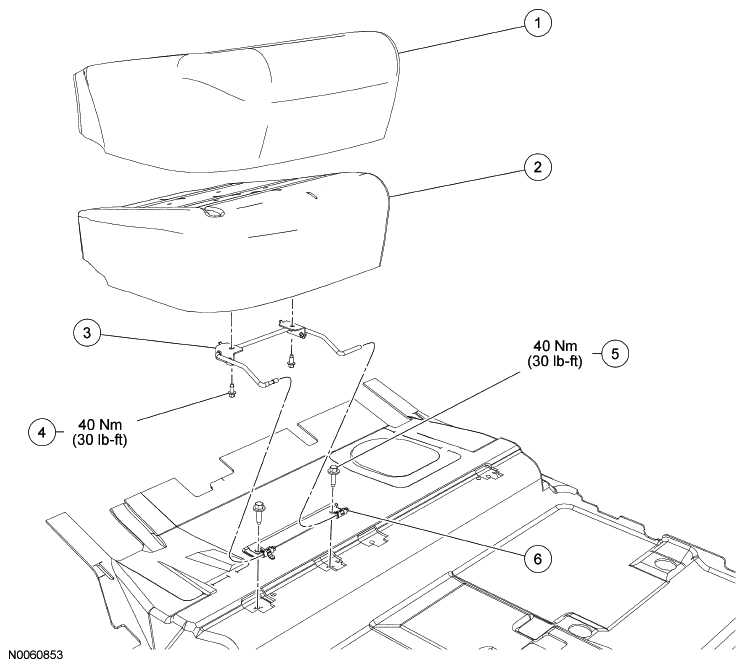

RH (40 percent) shown, LH (60 percent) similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 | Cushion cover |
| 2 | 63840 | Cushion base |
| 3 | 605B11 | Cushion pivot upper link |
| 4 | W505222 | Cushion pivot upper link bolt (2 required) |
| 5 | W707122 | Cushion hinge floor bracket bolt (2 required) |
| 6 | 606A50 | Cushion support-to-floor bracket |
