Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATION
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

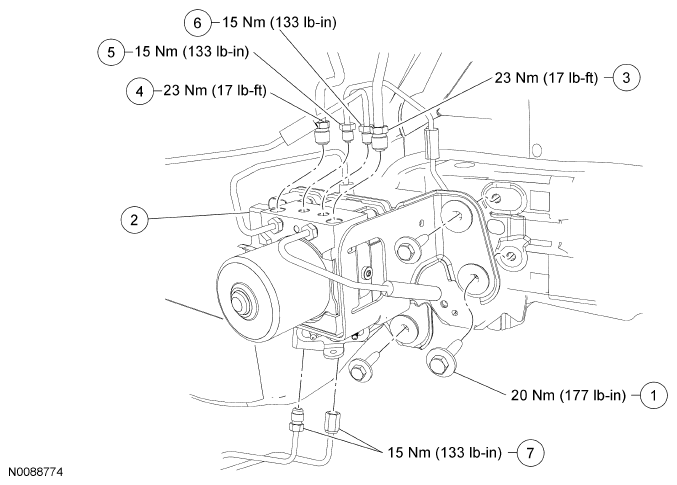

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W712119 | Hydraulic Control Unit (HCU) bracket-to-frame bolt (3 required) |
| 2 | 2C215 | HCU |
| 3 | - | Master cylinder secondary brake tube fitting (part of 2268) |
| 4 | - | Master cylinder primary brake tube fitting (part of 2268) |
| 5 | - | LH front brake tube fitting (part of 2264) |
| 6 | - | RH front brake tube fitting (part of 2263) |
| 7 | - | Rear brake tube fittings (part of 2267) |
