Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATION
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

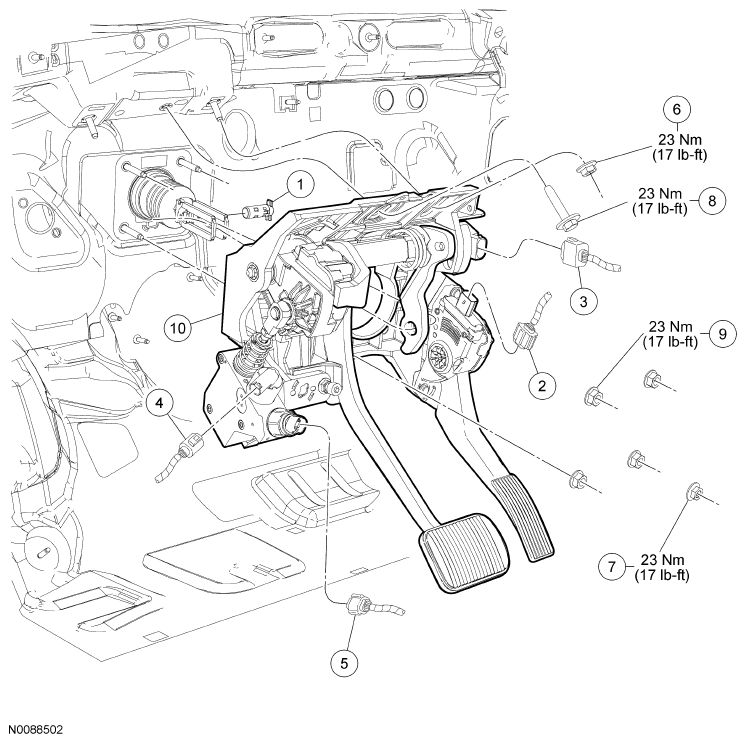

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2L523 | Brake booster push rod clevis locking pin |
| 2 | - | Accelerator pedal electrical connector (part of 14290) |
| 3 | - | Brake pedal angle sensor electrical connector (part of 14290) |
| 4 | - | Brake pressure sensor cut off valve electrical connector (part of 14290) |
| 5 | - | Brake pressure sensor electrical connector (part of 14290) |
| 6 | W707144 | Brake pedal bracket upper nut |
| 7 | W707144 | Brake pedal bracket lower nut |
| 8 | W710343 | Brake pedal bracket upper bolt |
| 9 | W520413 | Brake booster nut (4 required) |
| 10 | 2455 | Brake pedal and bracket assembly |
