Removal And Installation: Halfshaft: Material
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| PTFE Lubricant XG-8 |
ESB-M1C111-B |
NOTE:

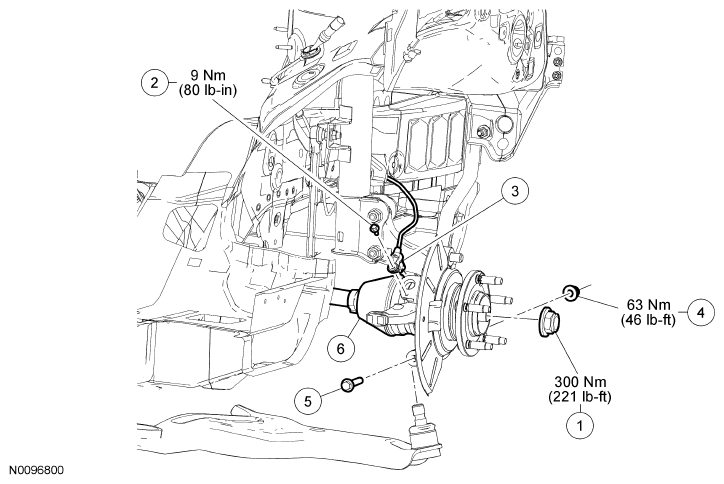

RH halfshaft shown in illustration, LH similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705967 | Wheel hub nut |
| 2 | W506013 | Wheel speed sensor bolt |
| 3 | 2C204 | Wheel speed sensor |
| 4 | W520213 | Lower ball joint nut |
| 5 | W709618 | Lower arm bolt |
| 6 | 3A427 | Halfshaft assembly |
