Cover Seal: Removal

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A new Power Transfer Unit (PTU) intermediate shaft seal must be installed whenever the intermediate shaft or PTU  is removed from the vehicle.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the PTU  . For additional information, refer to POWER TRANSFER UNIT (PTU) .
  3. Using the Bearing Cup Remover, the Extension from the Halfshaft Remover and a suitable slide hammer, remove and discard the deflector.

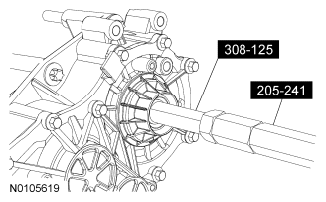

    Fig 1: Identifying Bearing Cup Remover, Extension From Halfshaft Remover And Suitable Slide Hammer
    G06394107Courtesy of FORD MOTOR CO.
  4. Remove the seal using the Slide Hammer and a suitable seal puller inserted into the groove seal.

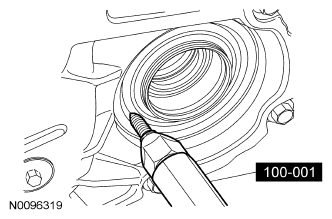

    Fig 2: Identifying Slide Hammer
    G06098380Courtesy of FORD MOTOR CO.
