Cover Seal: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the Halfshaft Oil Seal Installer, Rear Axle Oil Seal Installer and Handle, install the cover seal.
    • The seal is correctly installed if it is flush with the PTU  case cover.
      Fig 1: Identifying Halfshaft Oil Seal Installer, Rear Axle Oil Seal Installer And Handle
      G06098381Courtesy of FORD MOTOR CO.

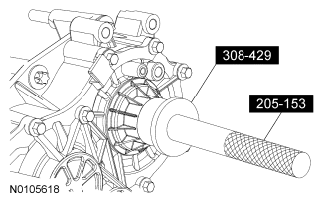

  2. Using the Handle and PTO Driven Gear Oil Seal Installer, install the deflector.
    Fig 2: Identifying Handle And PTO Driven Gear Oil Seal Installer
    G06394110Courtesy of FORD MOTOR CO.
  3. Install the PTU  . For additional information, refer to POWER TRANSFER UNIT (PTU) .
