Front Turn Signal Lamp Bulb

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Escape shown, Mariner similar.

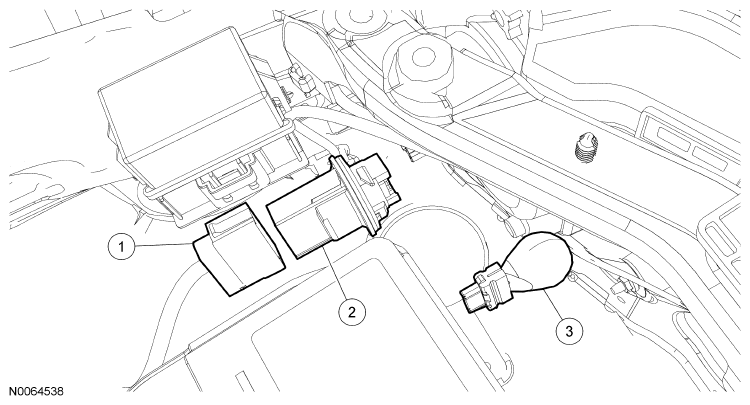

Fig 1: Identifying Front Turn Signal Lamp Bulb And Holder With Side Lamp Electrical Connector

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Side lamp electrical connector (part of 14290)
2	13411	Front turn signal lamp bulb holder
3	13466	Front turn signal lamp bulb
