Fog Lamp Bulb: Escape
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

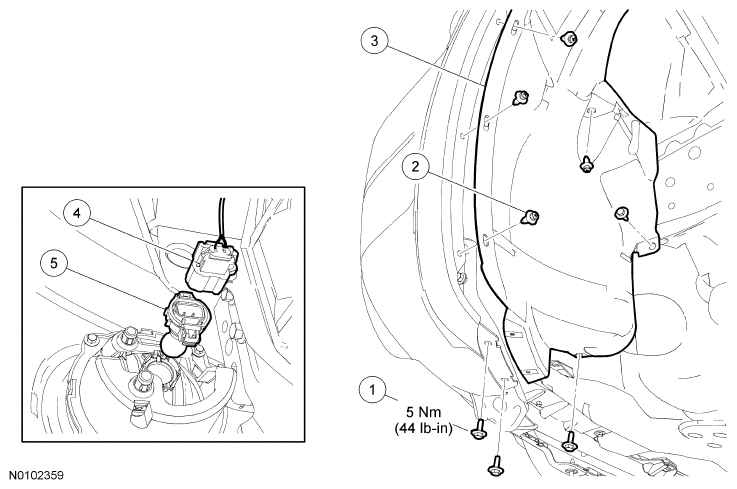

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W503924 |
Fender splash shield bolts (4 required) |
| 2 |
W706713 |
Fender splash shield pin-type retainers (4 required) |
| 3 |
16103 |
Fender splash shield |
| 4 |
- |
Fog lamp electrical connector (part of 14290) |
| 5 |
13N021 |
Fog lamp bulb |
