Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

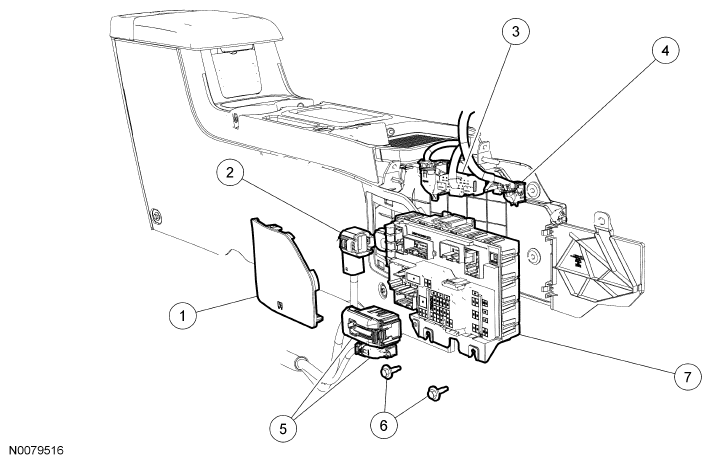

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Floor console Smart Junction Box (SJB) cover |
| 2 | - | SJB electrical connector (part of 14A120) |
| 3 | - | SJB electrical connectors (2 required) (part of 14290) |
| 4 | - | SJB electrical connectors (2 required) (part of 14401) |
| 5 | - | SJB electrical connectors (2 required) (part of 14405) |
| 6 | W505423-S | SJB bolts (2 required) |
| 7 | 15604 | SJB |
