Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

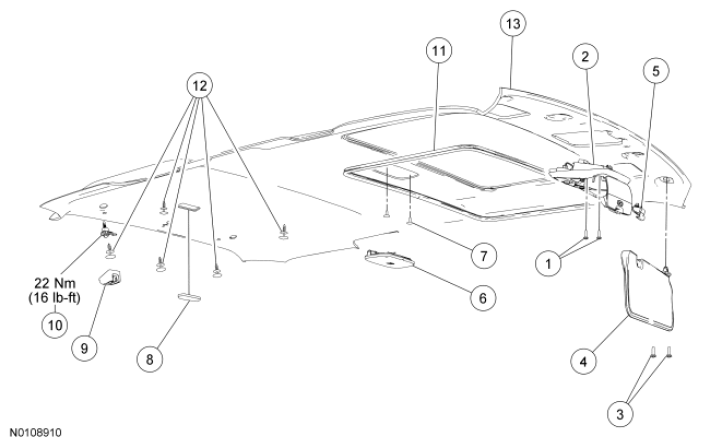

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W505043 | Overhead console screws (if equipped) (2 required) |
| 2 | 519A58 | Overhead console (if equipped) |
| 3 | N505003 | Sun visor screws (2 screws) |
| 4 | 04101 LH/04100 RH | Sun visor |
| 5 | 04132 | Sun visor clip |
| 6 | 13D76A | Interior lamp |
| 7 | W715089 | Interior lamp pushpin (2 required) |
| 8 | 13776 | Cargo lamp |
| 9 | 616B00 | Child seat tether anchor cover (3 required) |
| 10 | 613E72 | Child seat tether anchor bolt (3 required) |
| 11 | - | Headliner trim ring (if equipped) |
| 12 | W709343 | Pin-type retainers (5 required) |
| 13 | 51968 | Headliner |
