Removal and Installation
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

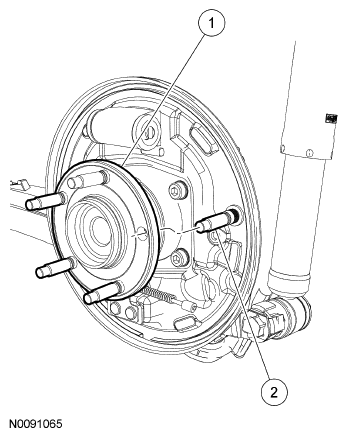

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel hub |
| 2 | 1107 | Wheel stud (5 required) |
NOTE:
Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
NOTE:
Never use a hammer to remove a wheel stud. Damage to the wheel hub may result.
- Remove the brake shoes. For additional information, refer to BRAKE SHOES .

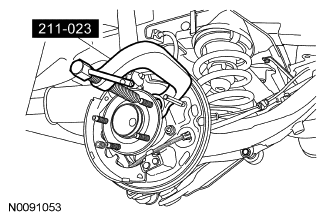

- Using the C-Frame and Screw Installer/Remover, remove the wheel stud.
- Position the new wheel stud in the wheel hub, aligning the serrations in the wheel hub flange made by the original wheel stud.
- Place approximately 4 washers over the outside end of the wheel stud and thread a standard wheel nut onto the wheel stud with the flat side against the washers.
- Tighten the wheel nut until the wheel stud head seats against the back side of the wheel hub flange.
- Remove the wheel nut and washers.
- Install the brake shoes. For additional information, refer to BRAKE SHOES .
NOTE:
Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 4) to allow the wheel stud to fully seat against the hub flange.
