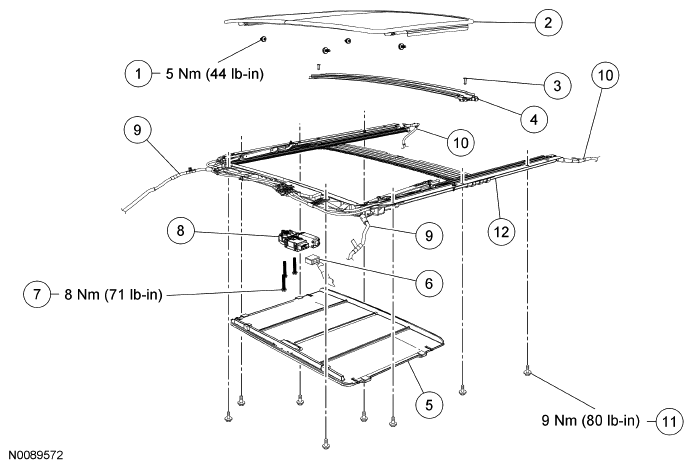

Roof Opening Panel - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 78502B88 | Roof opening panel glass screw (4 required) |
| 2 | 7850054 | Roof opening panel glass |
| 3 | - | Roof opening panel drain channel screw (2 required) |
| 4 | 7854022 | Roof opening panel drain channel |
| 5 | 78519A02 | Roof opening panel shield |
| 6 | - | Roof opening panel motor electrical connector |
| 7 | 15C668 | Roof opening panel motor screw (3 required) |
| 8 | 15790 | Roof opening panel motor |
| 9 | 78502C52A/78502C53A | Front drain hose |
| 10 | 78502C52B/78502C53 | Rear drain hose |
| 11 | - | Roof opening panel frame bolt (8 required) |
| 12 | 78502C22 | Roof opening panel frame |
- For additional information, refer to the appropriate procedure(s).
