Halfshaft Seal - LH: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new halfshaft seal on the Differential Seal Installer and Handle.
    Fig 1: Locating Halfshaft Seal On Differential Seal Installer And Handle
    G06376921Courtesy of FORD MOTOR CO.
  2. Using the Differential Seal Installer and Handle, install the LH halfshaft seal.

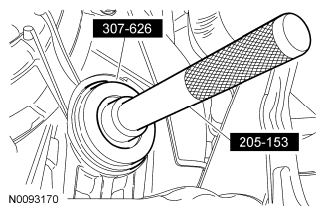

    Fig 2: Installing LH Halfshaft Seal Using Differential Seal Installer And Handle
    G06376922Courtesy of FORD MOTOR CO.
  3. Install the front LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  4. Fill with clean transmission fluid to the correct level.
